2011 JW power Ariel Gardner-Denver SSQG99C Rotart Screw with 3 Stage 4500 psi discharge

A rare find perfect for a low gas pressure application

The compressor was commissioned in 2011. It was engineered, constructed and maintained by JW Operating

Company.

It can operate on 2LB inlet pressure

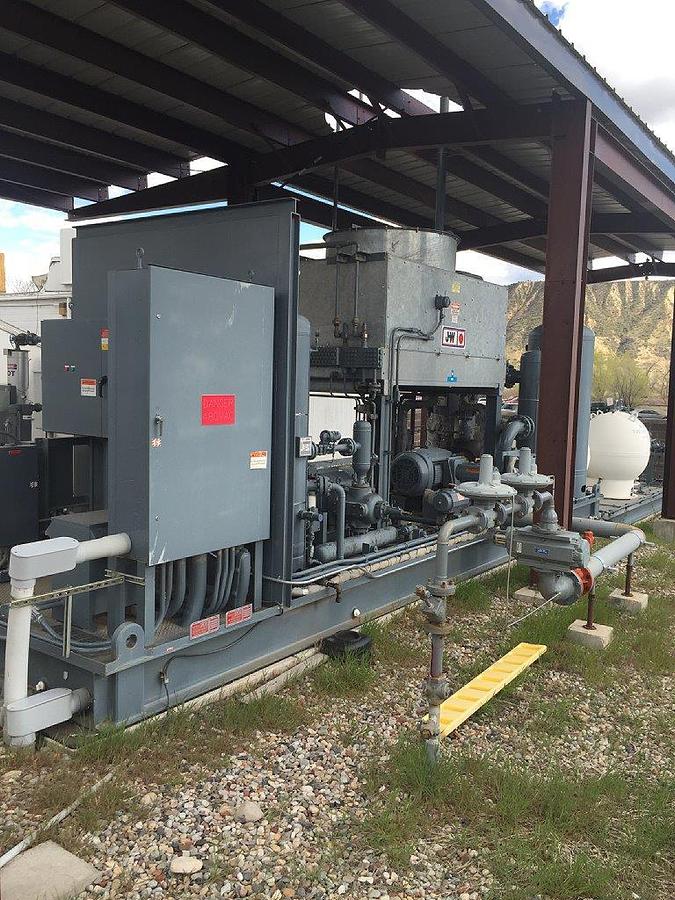

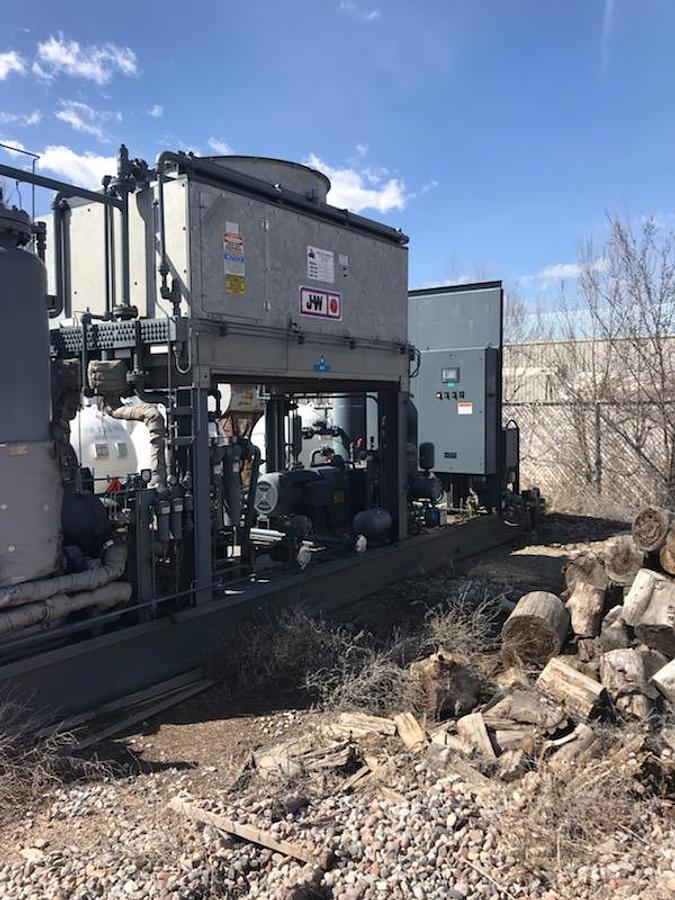

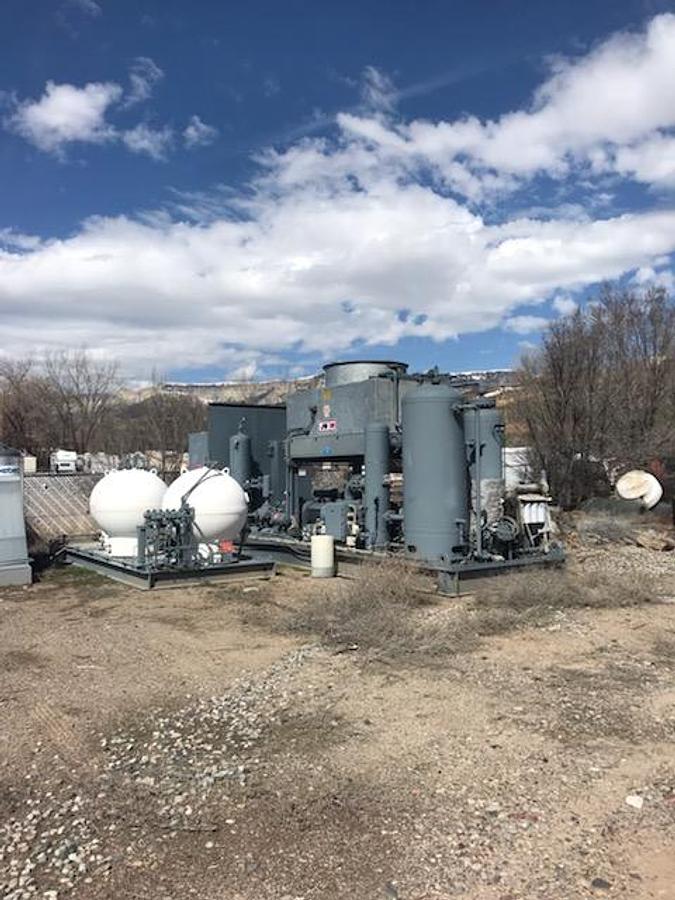

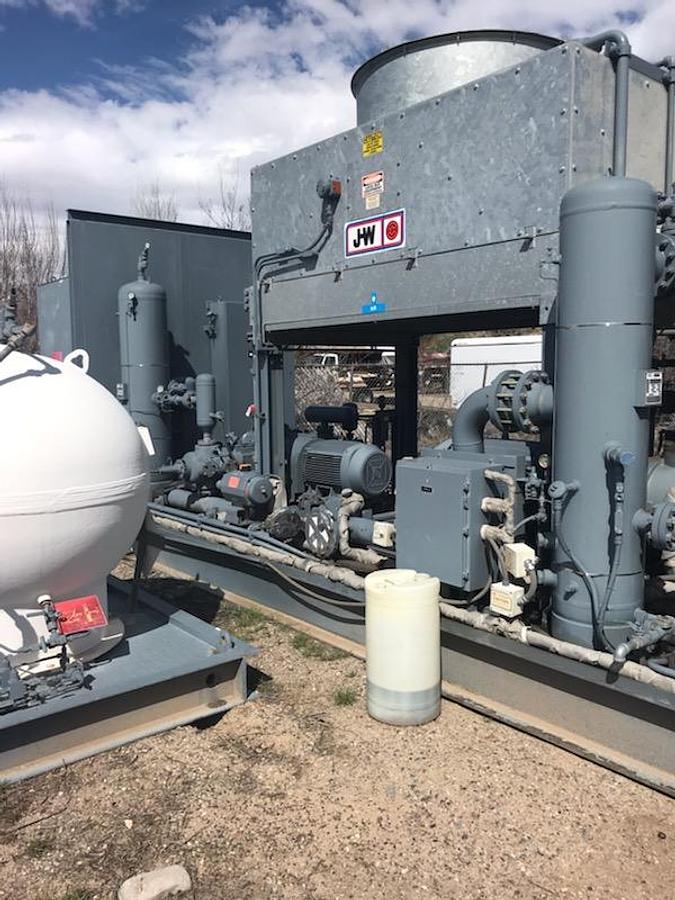

The compressors and storage vessels are skid mounted and ready for relocation. The compressors were serviced in

2014 including valve cleaning and were fogged for storage since its decommissioning.Total operating hours: approx. 1,700.

The compressor package consists of (1) 250 horsepower rotary screw compressor followed by (1) 100 horsepower

reciprocating compressor. This package is designed for low residential gas supply pressure ratings and is capable

of discharging at 4,500 psi to the storage vessel skid at 340 scfm. The compressor skid includes heat exchange

coolers, high efficiency motors, and all the necessary electrical control panels.

• Compressor Skid

• J-W EA-100-3 Ariel JGP/2 CNG Compressor (100 hp) 1800 RPM, 460 VAC motor

Screw Compressor

Manufacturer / Model Type Gardner-Denver SSQG99C

240 HP maximum suction is 50 PSI

Maximum discharge is 250 PSI

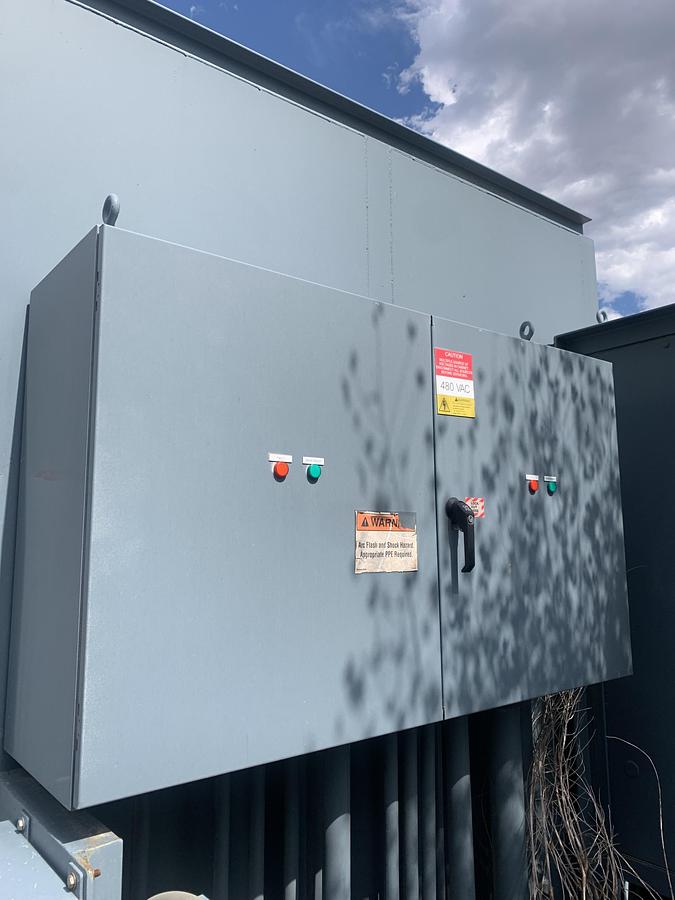

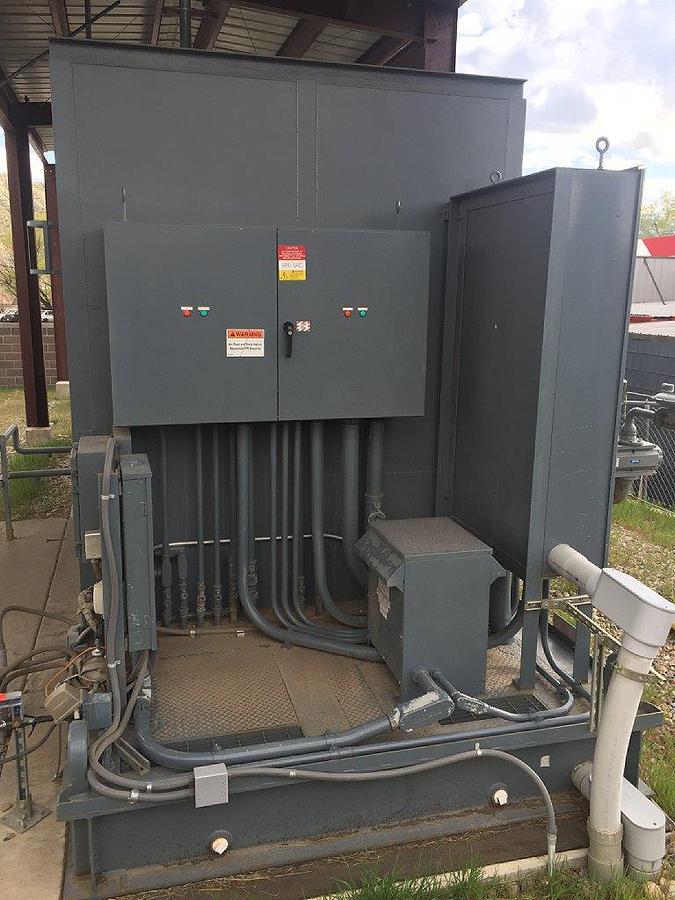

• Hazardous Area Separation Wall to house electrical disconnects, motor starter, and other NFPA

protected items

• 5 hp air compressor coupled for instrument & purge air

• 250 HP and 100 HP Motor Soft Starters

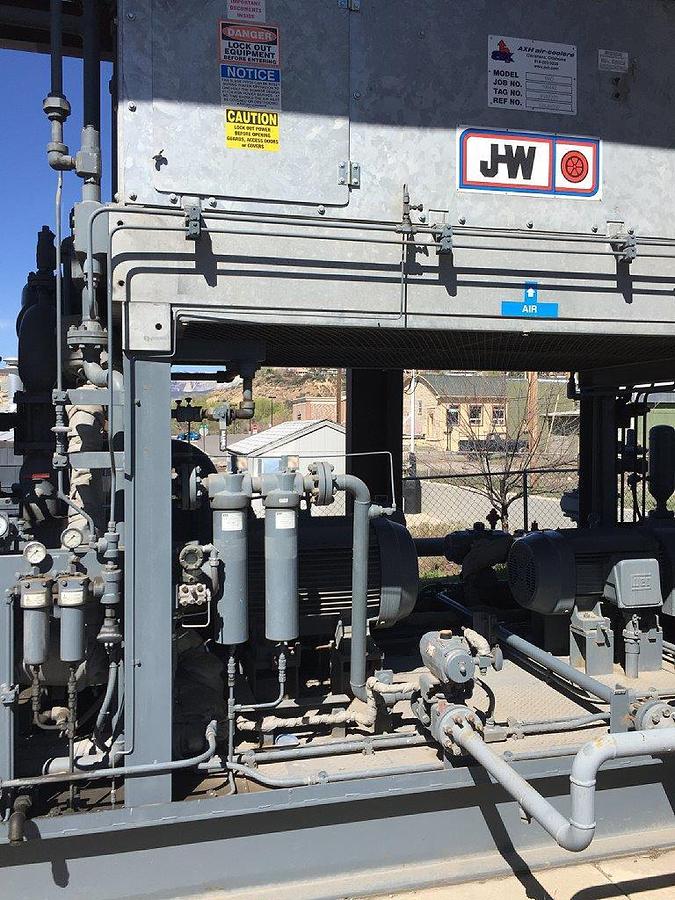

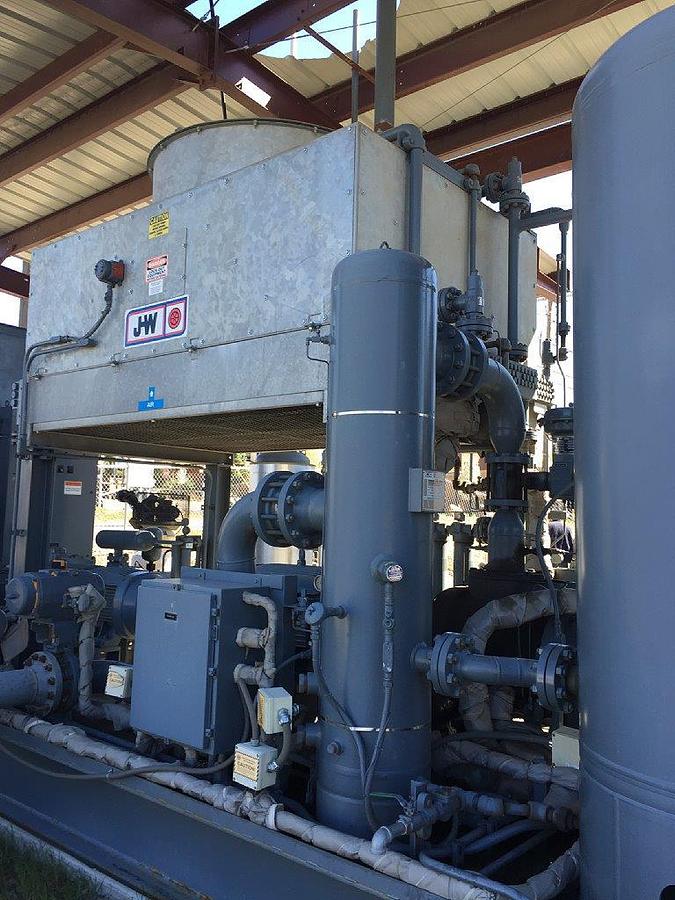

• AXH air cooler

• Murphy Controls

See attached spec sheets
