2 Government Facility Maintained by Clean Energy Ariel 4 Stage Angi Packages

Inlet Pressure 33 to 70 PSI

About 5000 hours and Disconnected working less than 30 days ago

Here’s a link valid til 1/26/26 for the manuals 20713

Please ask for more multi-runs

We can discount if you buy more than 1.

Elevation,ft: 50.0 Barmtr,psia: 14.669 Ambient,°F: 100.00 Type: Other

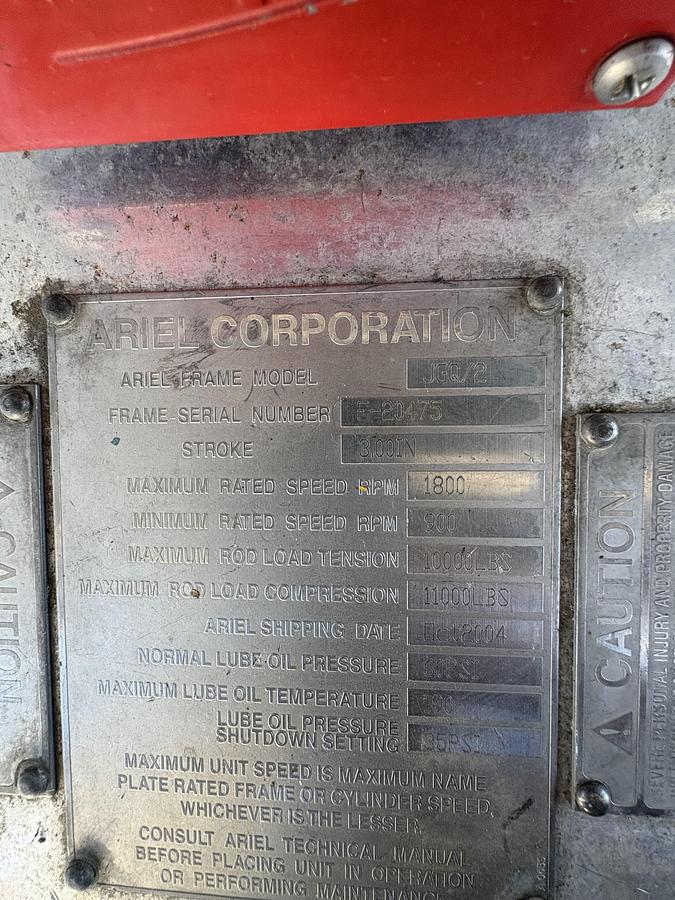

Frame: JGQ/2 Stroke, in: 3.00 Rod Dia, in: 1.125 Mfg: Weg

Max RL Tot, lbf: 20000 Max RL Tens, lbf: 10000 Max RL Comp, lbf: 11000 Model:

Rated RPM: 1800 Rated BHP: 280.0 Rated PS FPM: 900.0 BHP: 125

Calc RPM: 1750.0 Calc BHP: 92 Calc PS FPM: 875.0 Avail: 125 (0)

Services Gathering

Stage Data: #1 #2 #3 #4

Flow Req'd, SCFM 200.000 200.000 200.000 200.000

Flow Calc, SCFM 208.354 208.354 207.671 207.092

Cyl HP per Stage 22.7 22.7 18.4 22.5

Specific Gravity 0.6001 0.6001 0.6000 0.5999

Ratio of Sp Ht (N) 1.2713 1.2625 1.2811 1.2914

Comp Suct (Zs) 0.9928 0.9848 0.9554 0.8921

Comp Disch (Zd) 0.9916 0.9854 0.9660 1.0412

Pres Suct Line, psig 35.00 N/A N/A N/A

Pres Suct Flg, psig 33.00 136.01 457.51 1299.65

Pres Disch Flg, psig 140.66 467.18 1314.73 4545.15

Pres Disch Line, psig N/A N/A N/A 4500.00

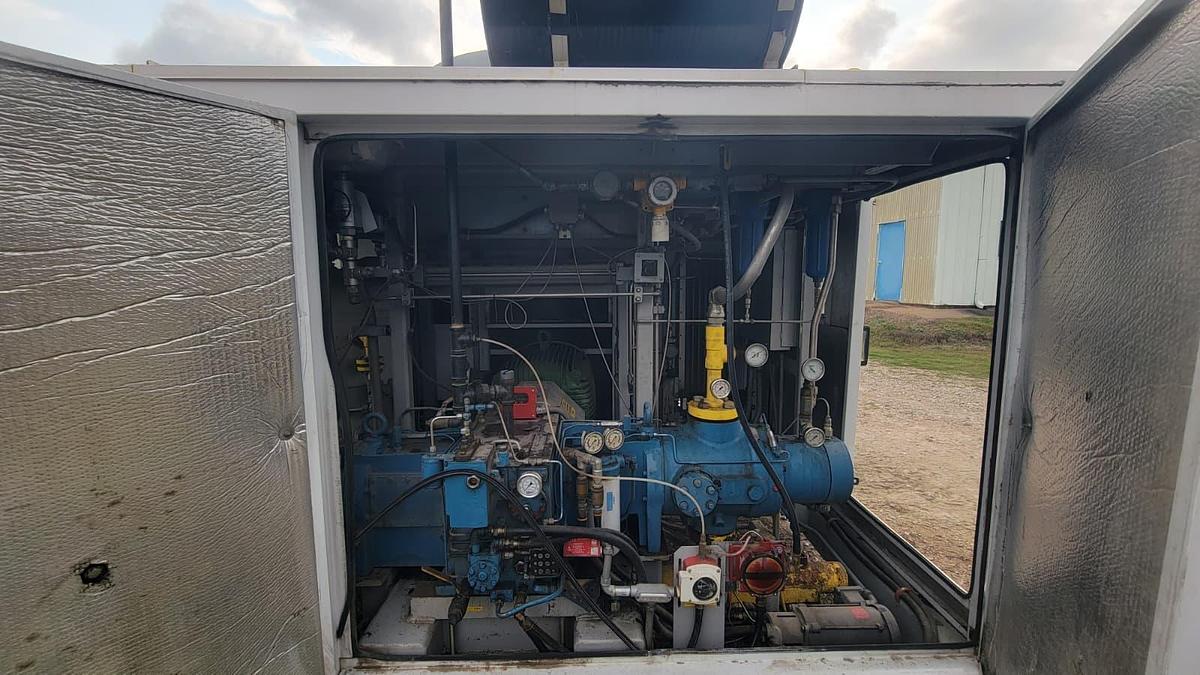

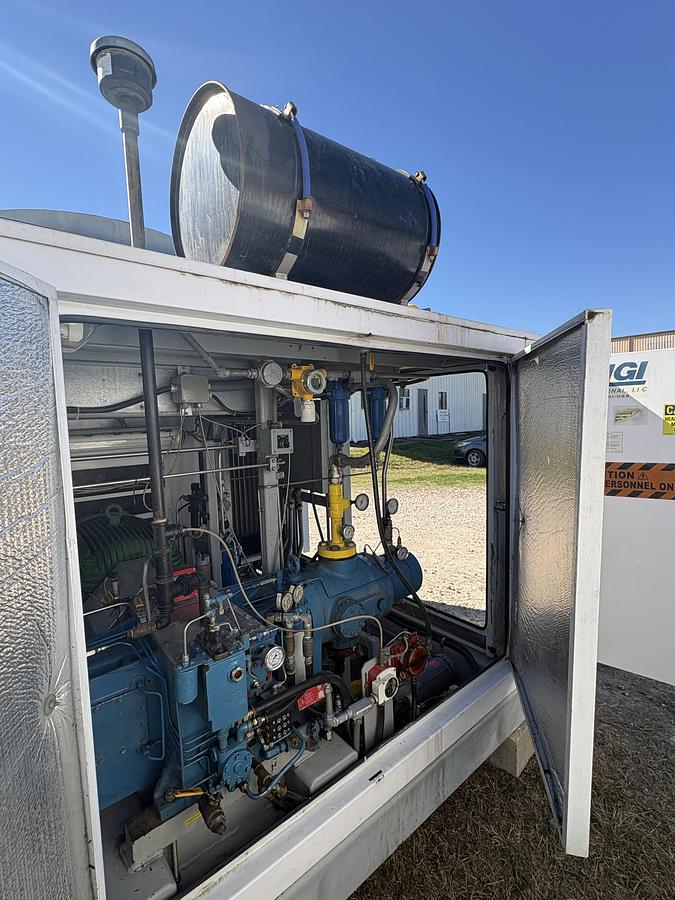

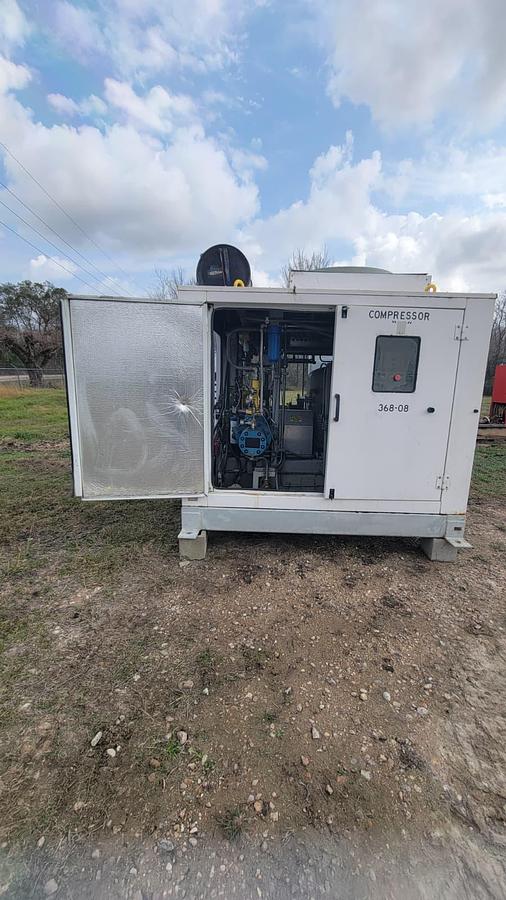

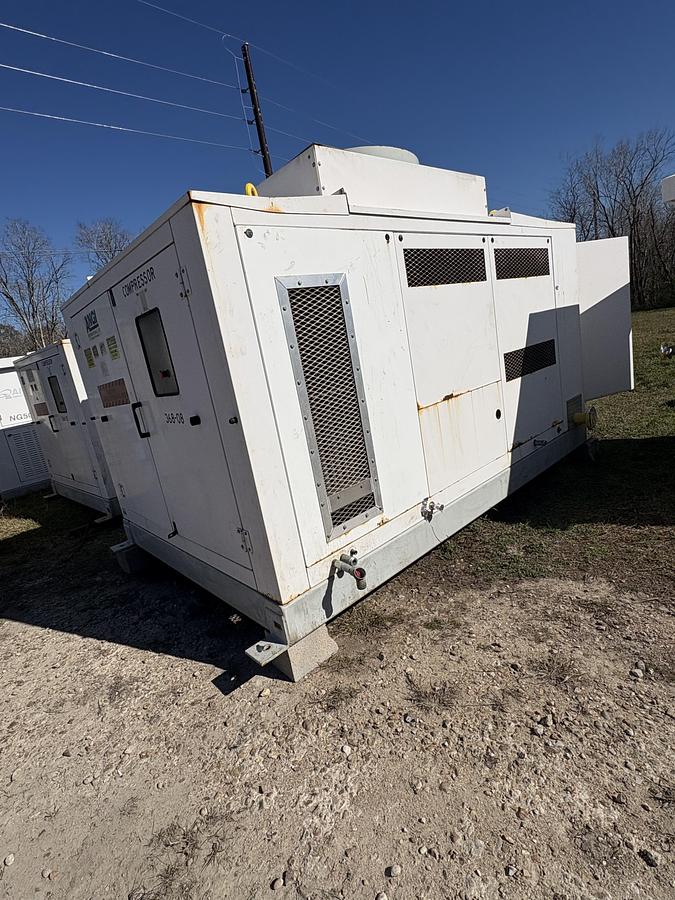

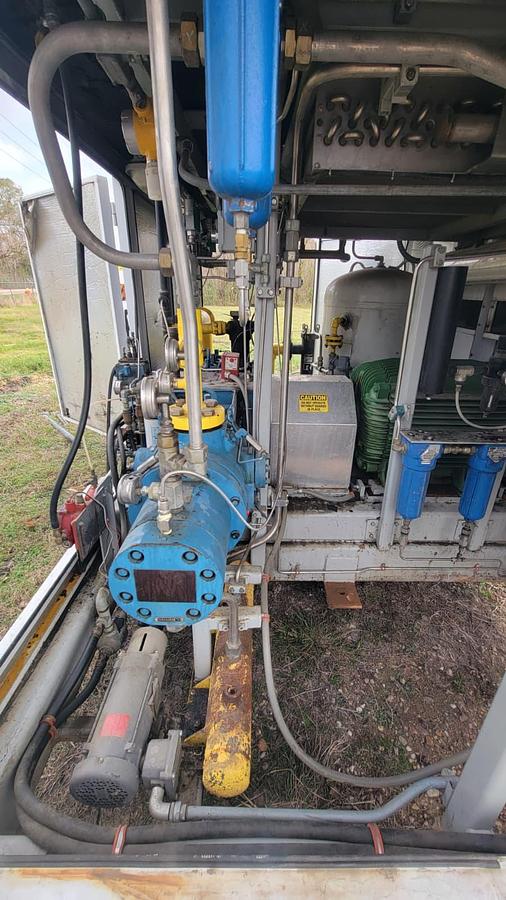

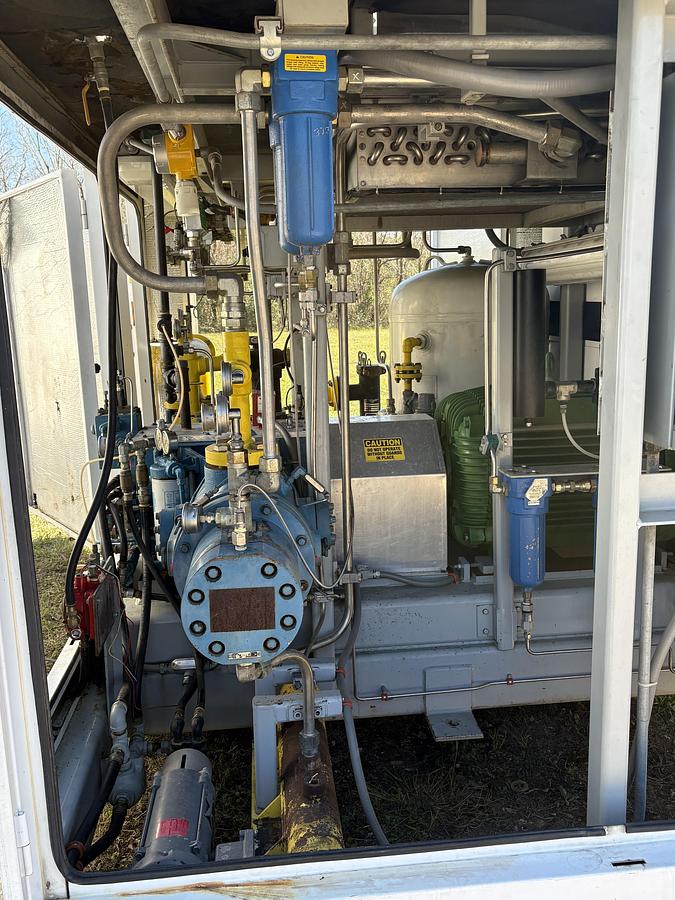

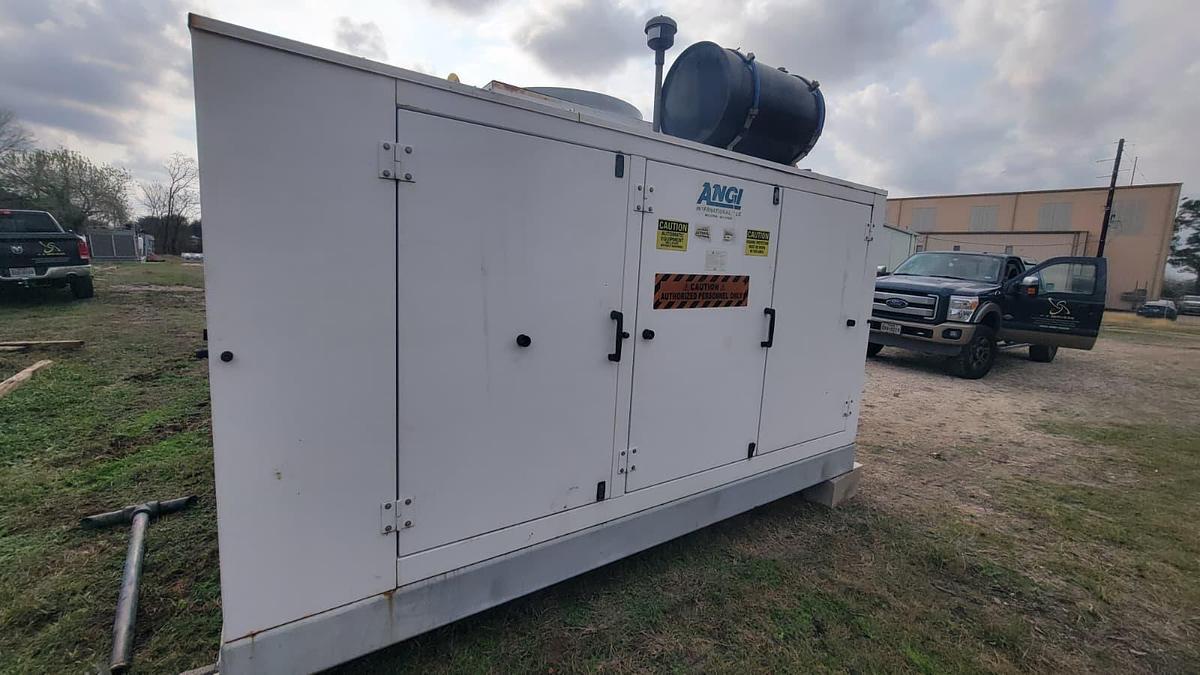

2 Angi Packaged 125 HP 4 stage Ariels JGQ/2 Disconnected less than 30 days ago
