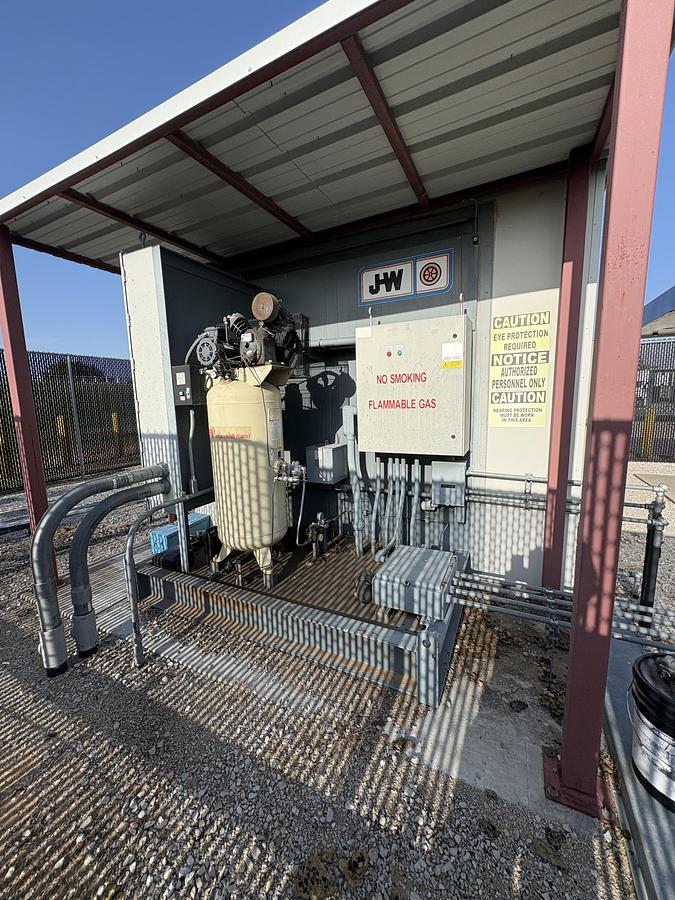

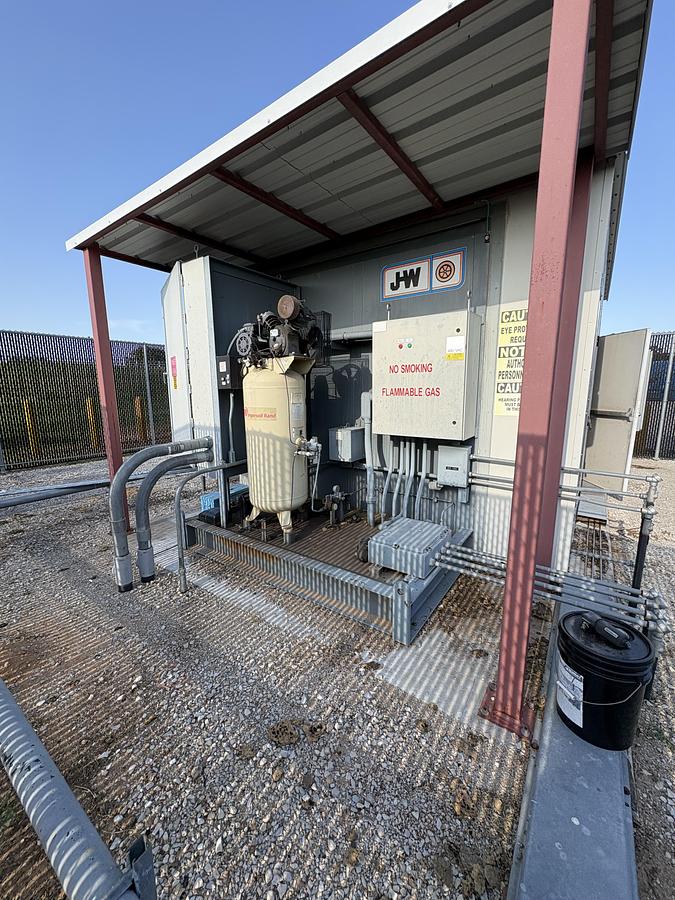

4 Stage ARIEL JW Power 125 HP Complete Station

Compression JW Package 5718

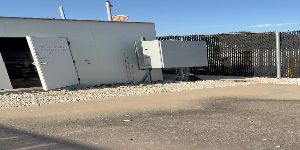

Comes with an Enclosure

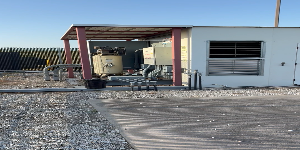

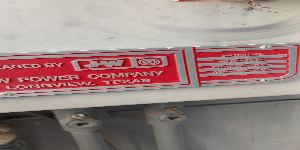

Please check the videos :)

Here is a link for the CNG Compressor Manual. It is good until 10/1/2026 :) Please highlight and put into your browser.

https://urldefense.proofpoint.com/v2/url?u=https-3A__jwenergy.box.com_s_wc3i572t0omenqcewpwe4e23935ctt6d&d=DwMFAg&c=euGZstcaTDllvimEN8b7jXrwqOf-v5A_CdpgnVfiiMM&r=orrPP1ESscvwaPpcHxiHeTW15nx-MyvTi4VRCaymDVc&m=3oEvXIAYgO_c_glWcdAJxpdTWXTYUIur2N4kdYup-qMAAVPe366-Kl-7_lwnTmtu&s=E_qXo6Ii7bv-oXPlgGuGWpW9fXULUgLoJyr9AB8HuUU&e=

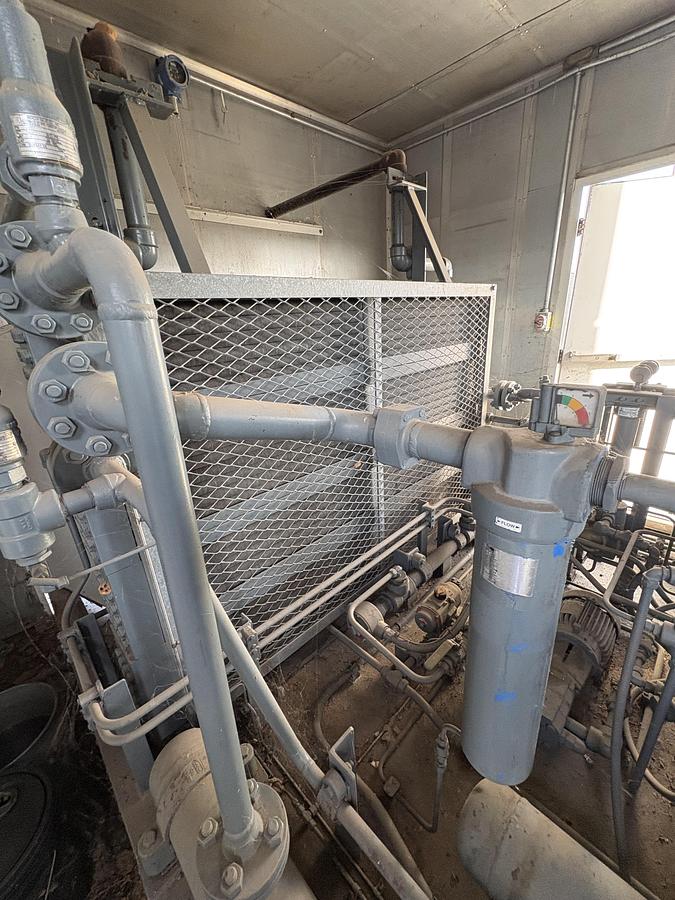

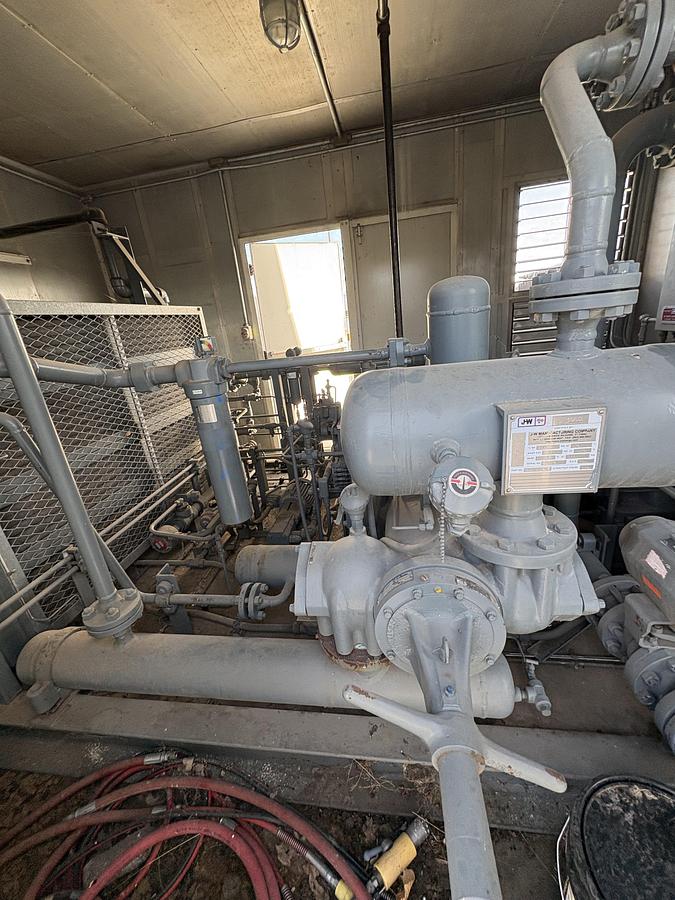

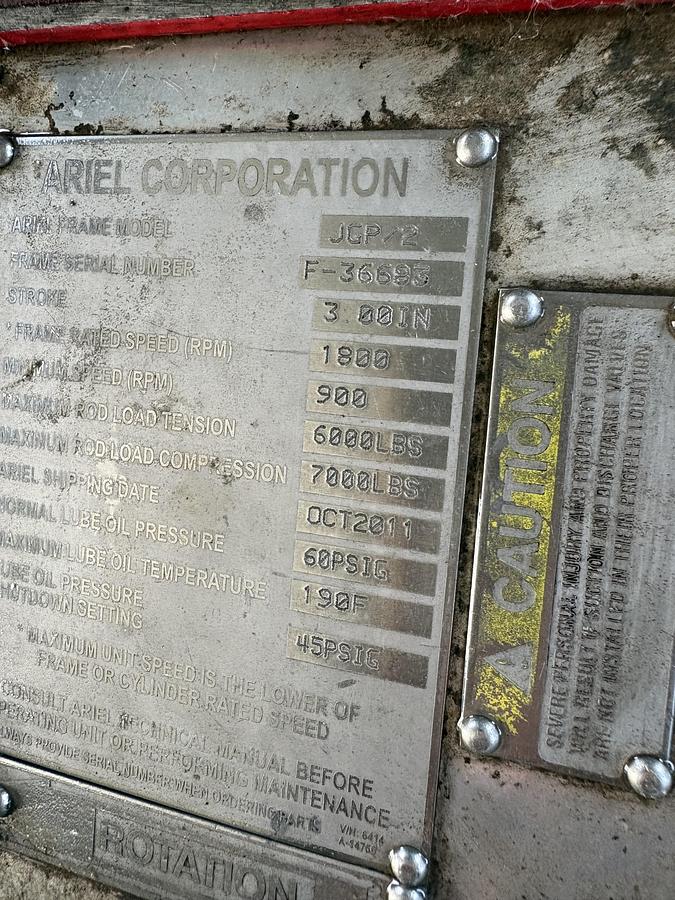

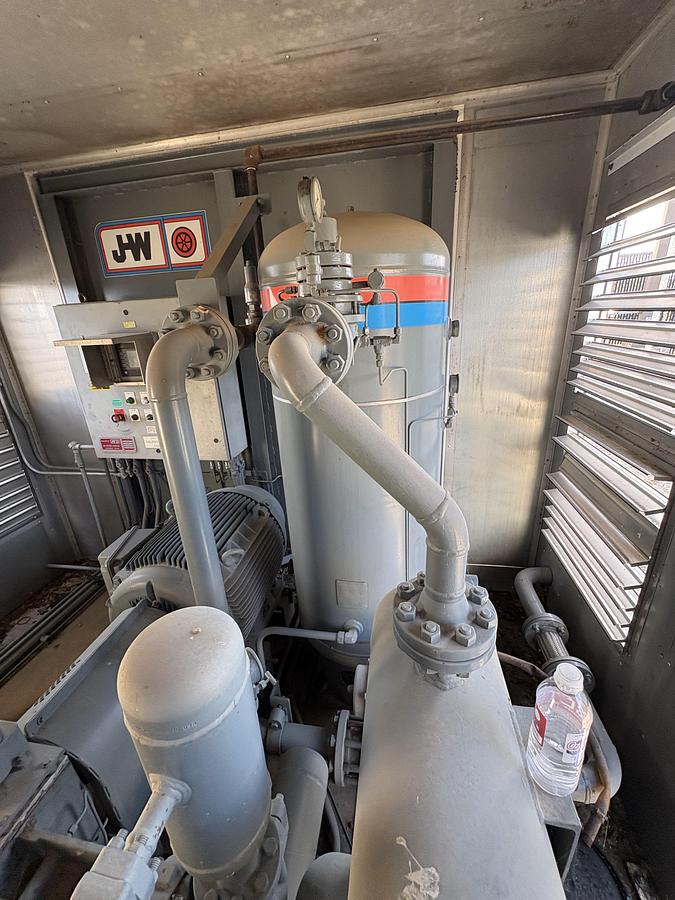

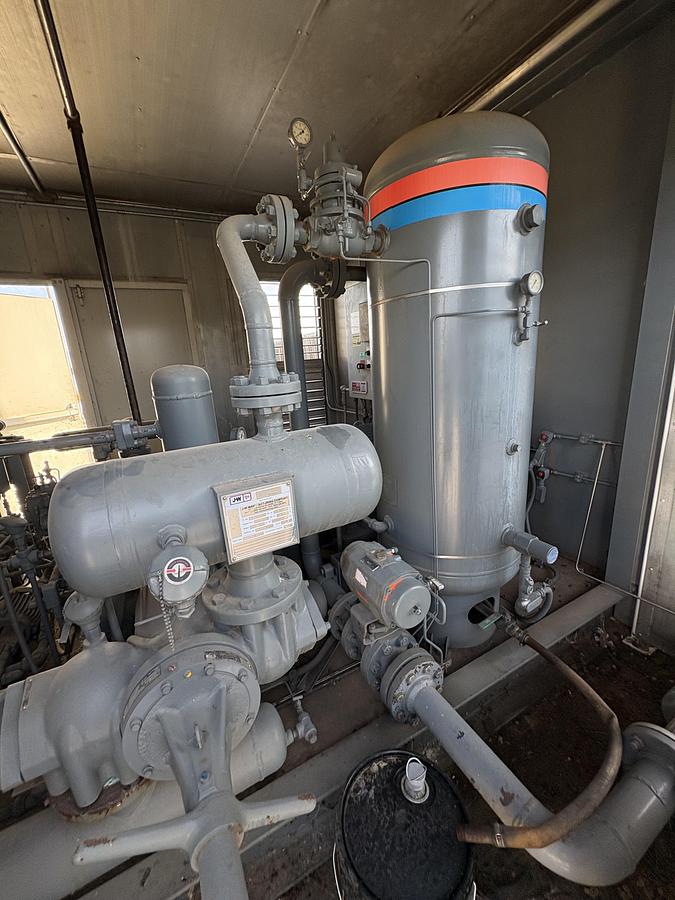

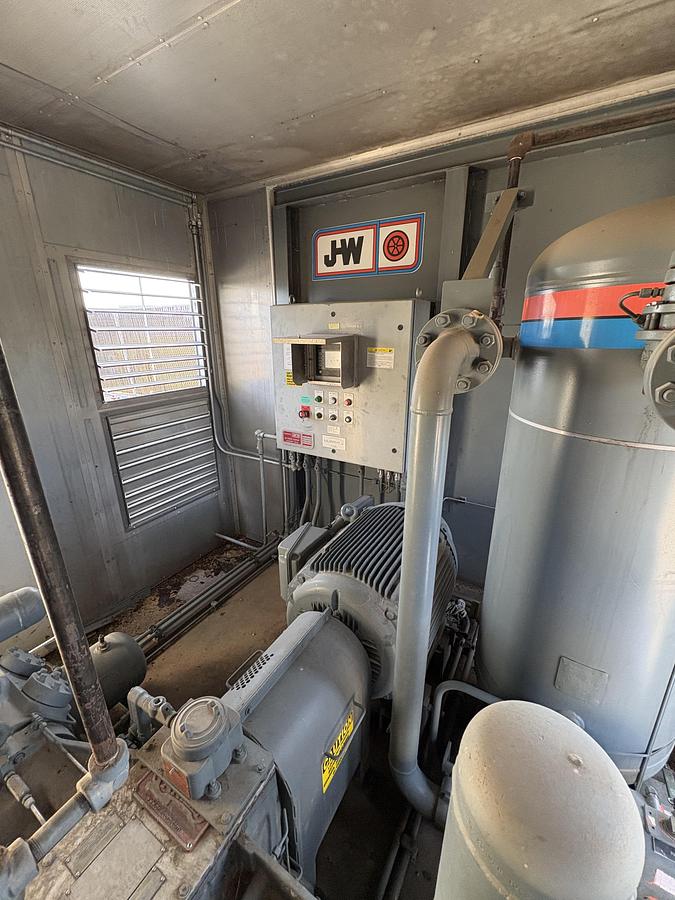

4 Stage Ariel Station Packaged assembled by JW Power.This JGP/2 Compressor currently operating at 60 PSI inlet with a range of 20-70 PSI.

This low hour station was operational 60 days ago and shut down for lack of use.

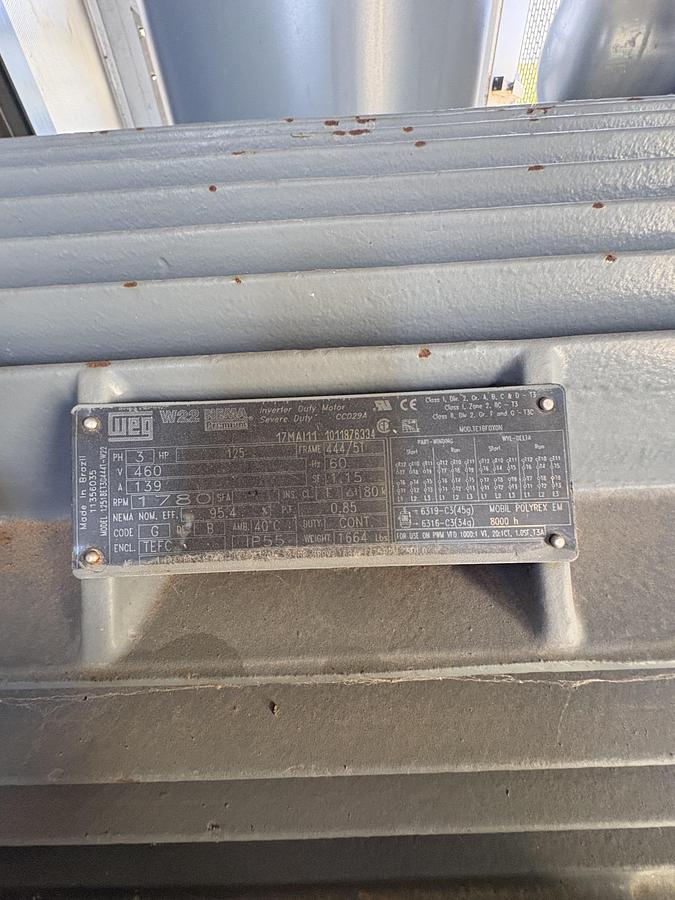

125 HP Electric Driven

Removed working

Operating Range is 20-70 psi Suction or inlet pressure

at 20 LB inlet: Flow Calc, SCFM 186.950 Discharge

At 70PSI: Flow Calc, SCFM 275.883 Discharge

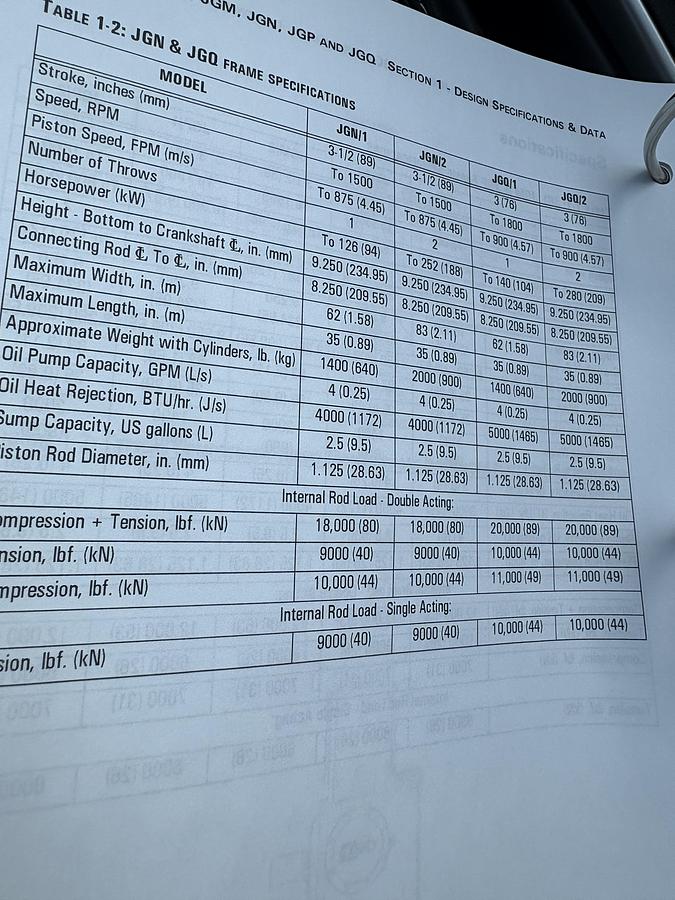

See Compressor details in the attached document

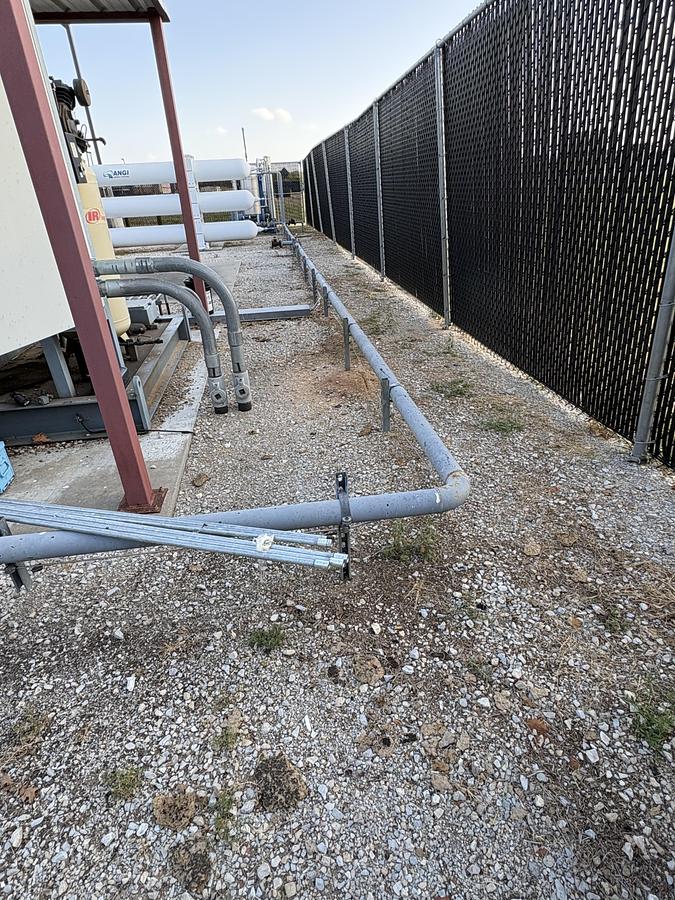

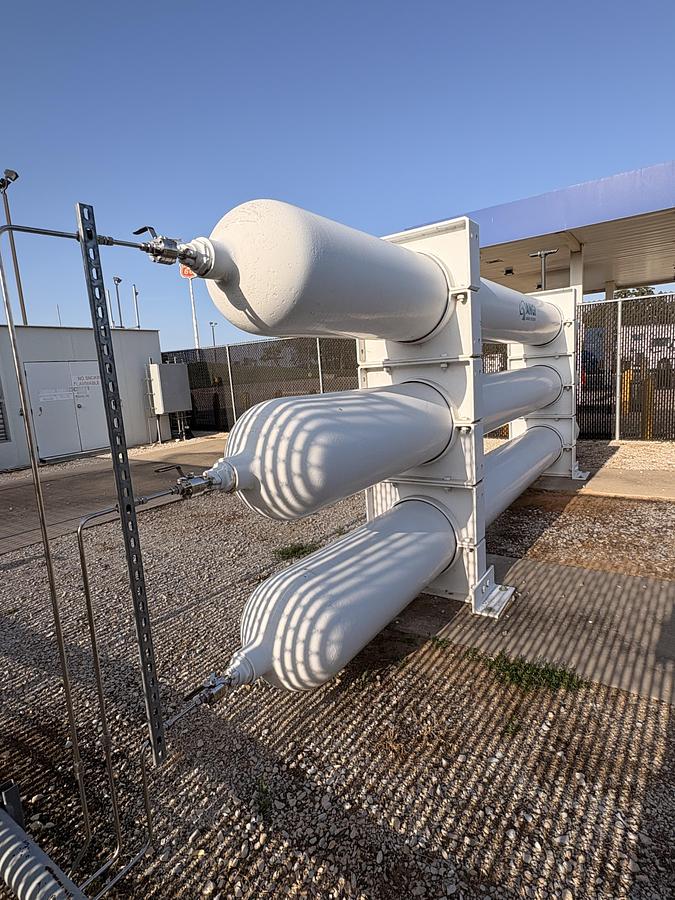

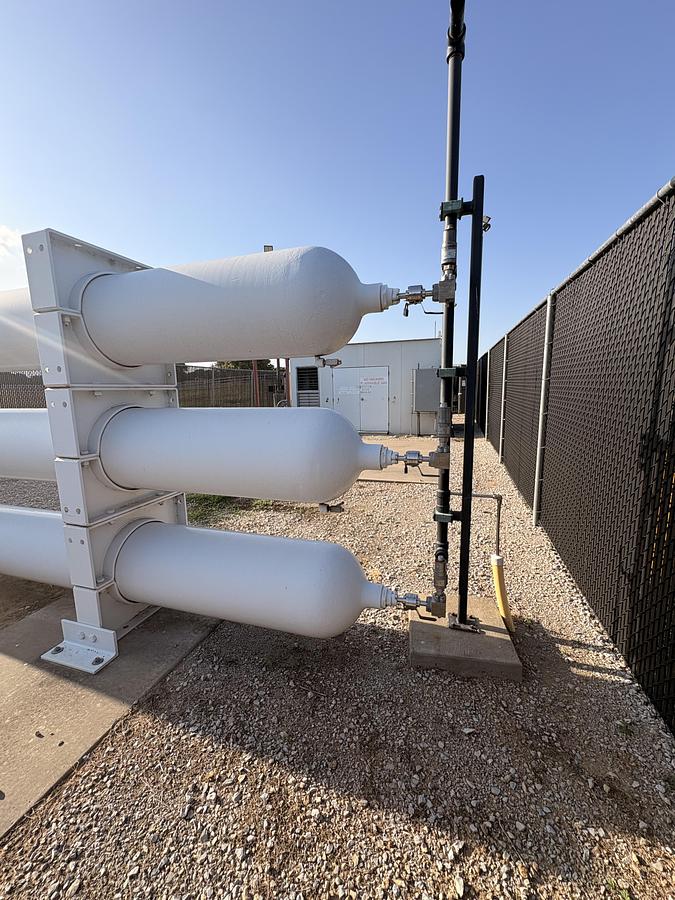

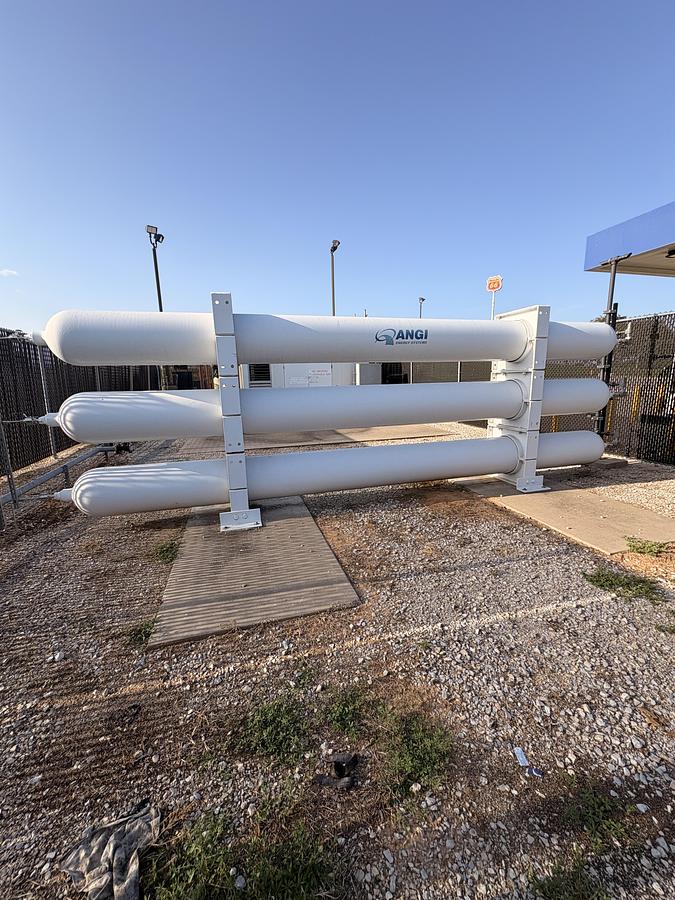

Storage:

CP Industries ASME Tri-Pack

5500 PSI

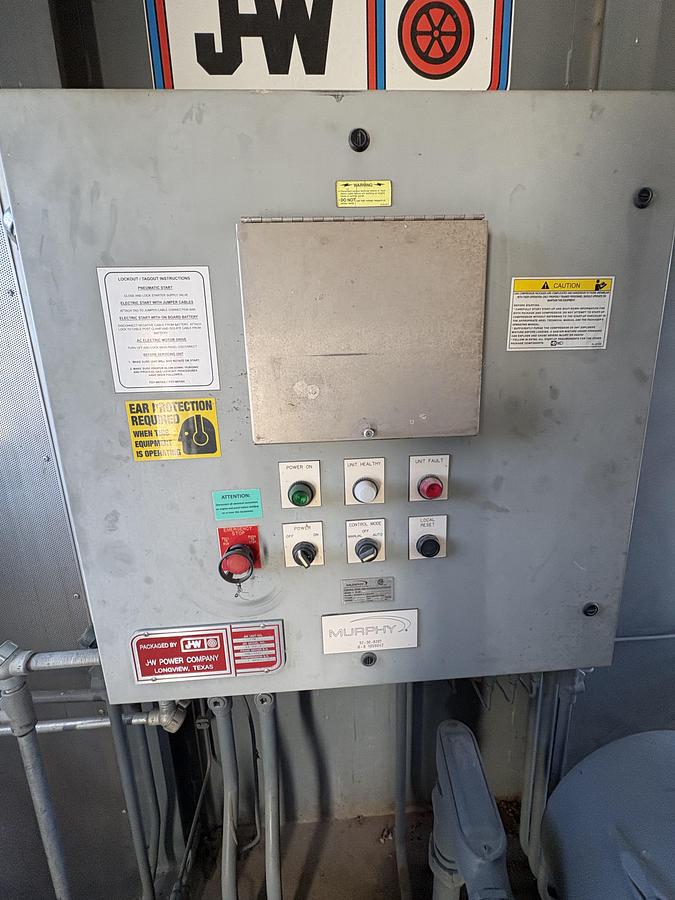

Comes with Priority Panel

300 GGE Capacity

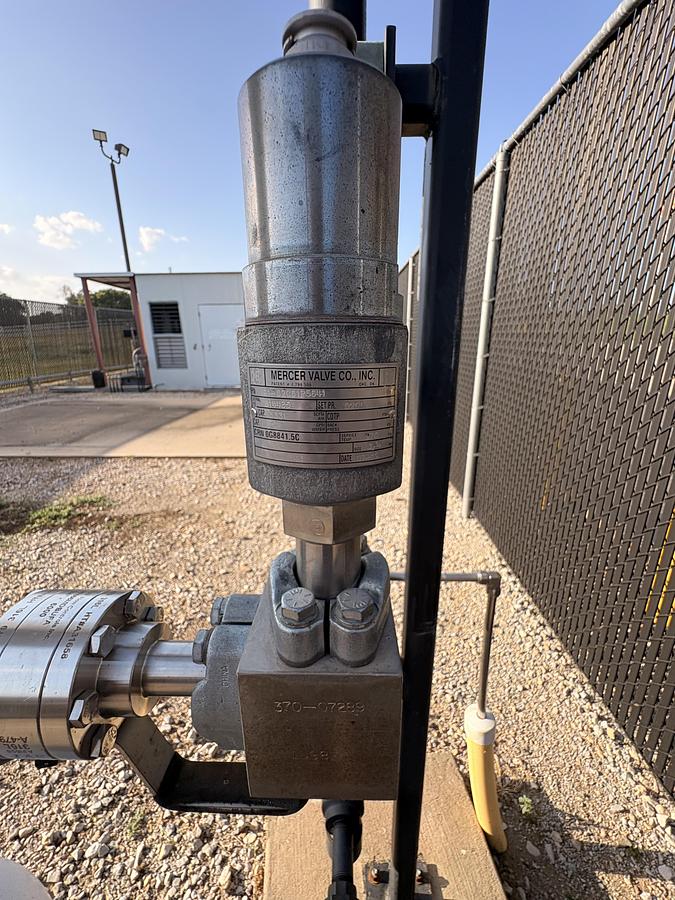

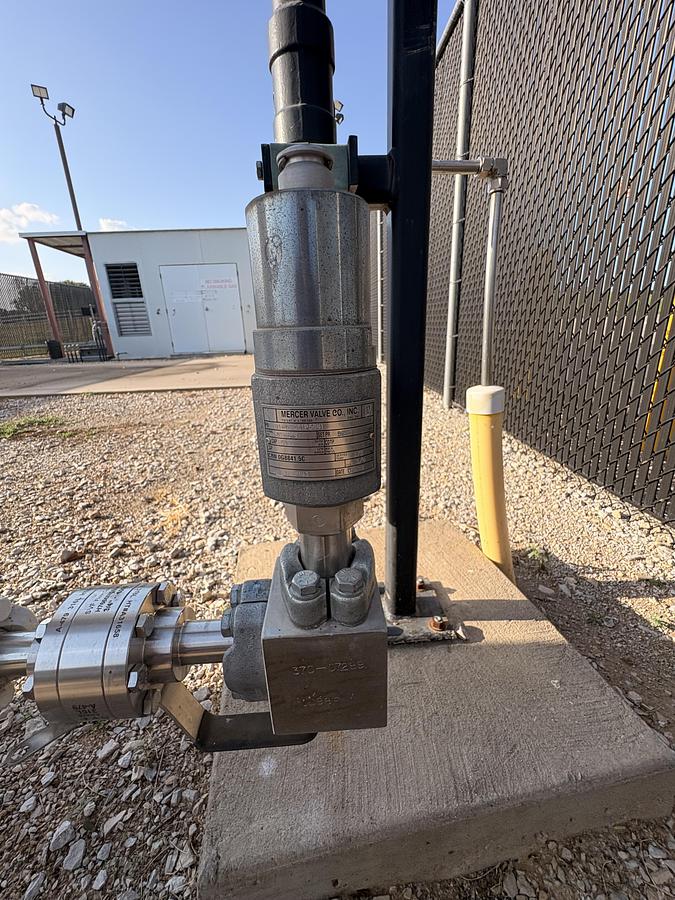

Mercer PRVs and Safety manifold

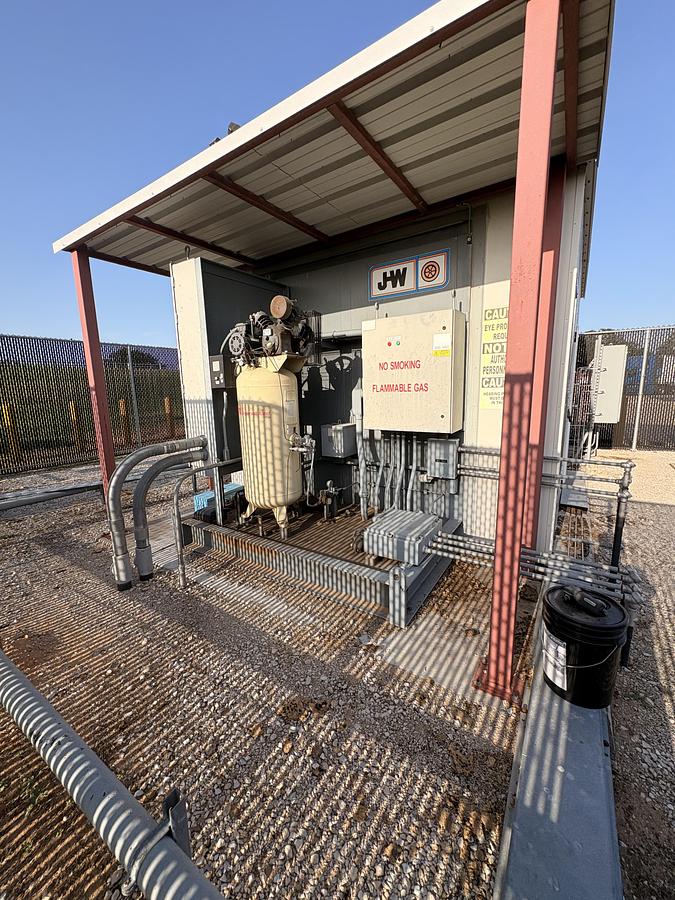

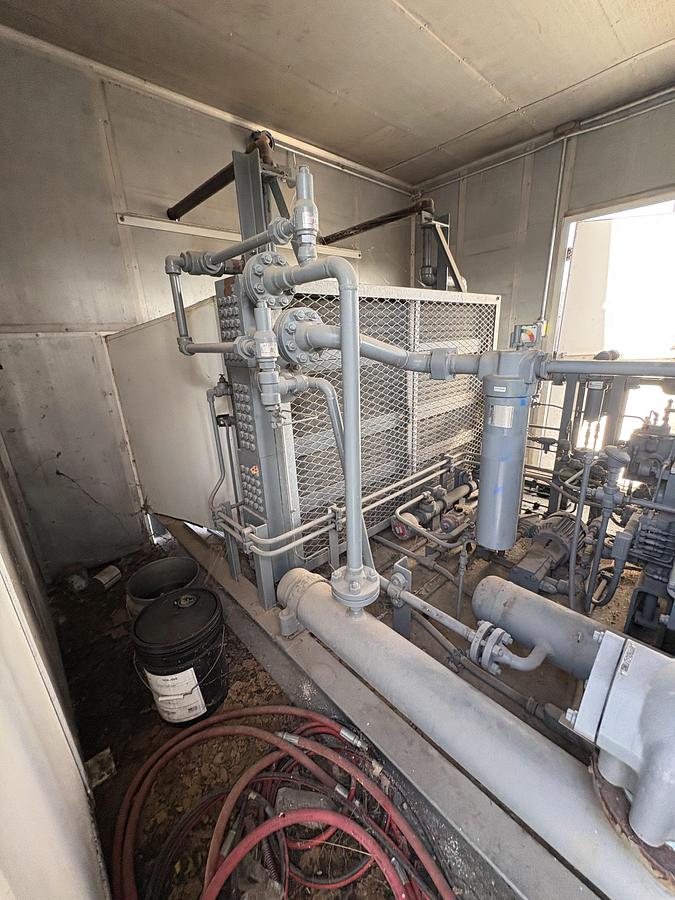

Regen Dryer:

PSB Industries

Serial 321301

Max inlet 175 PSI

460/3/60

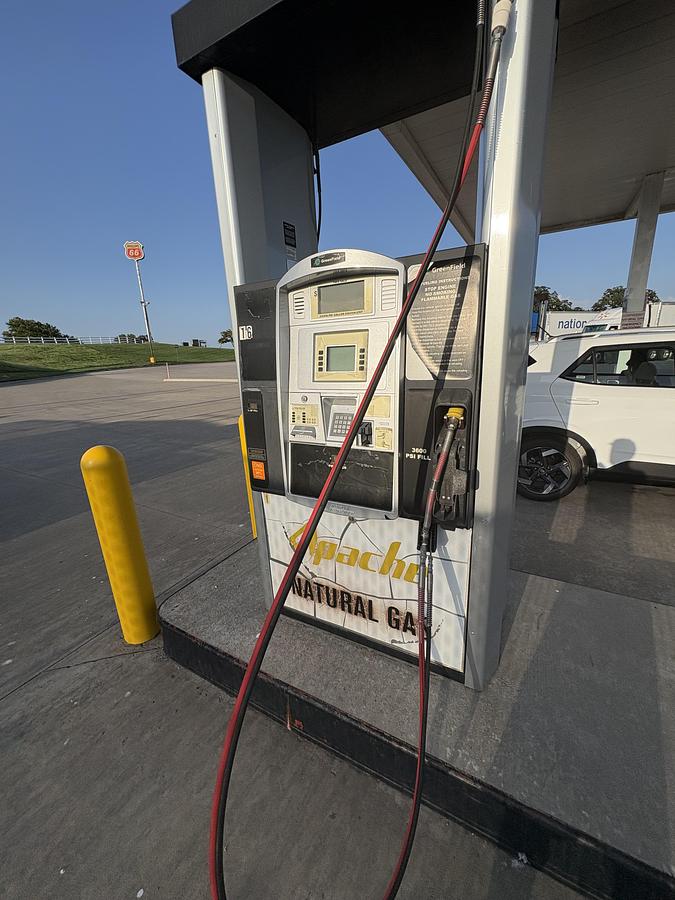

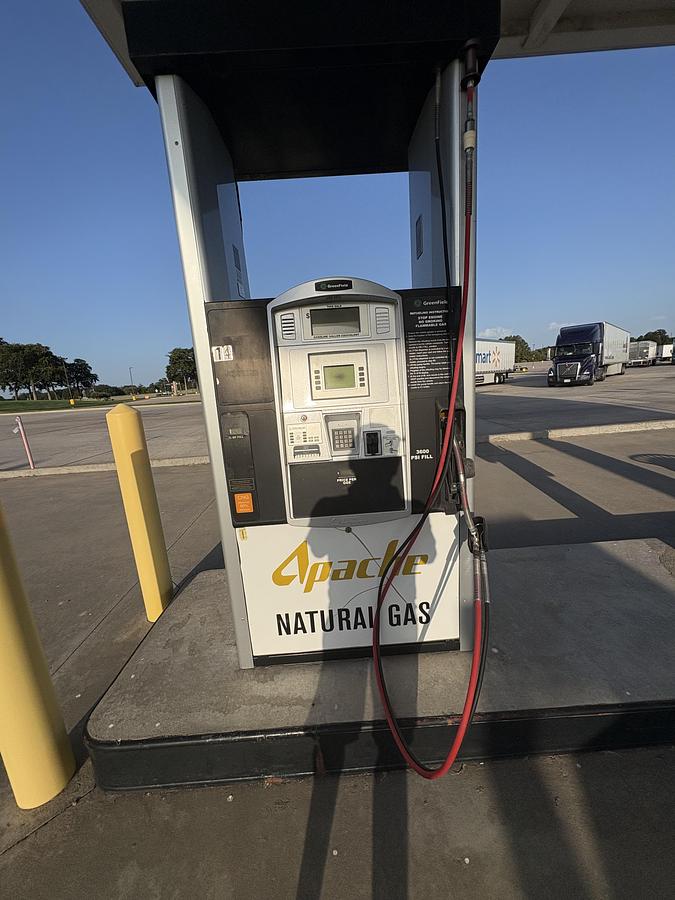

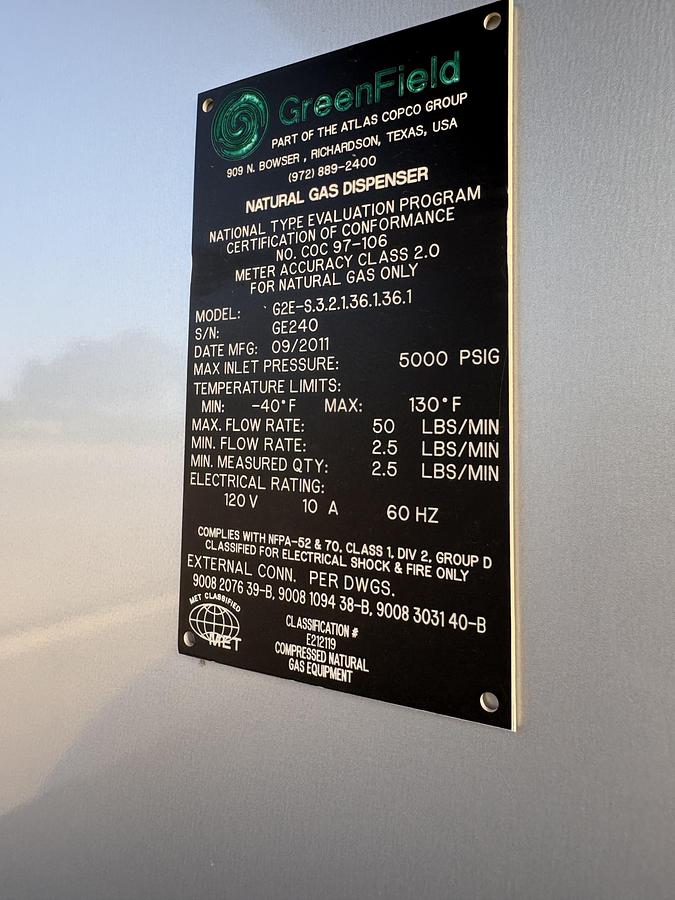

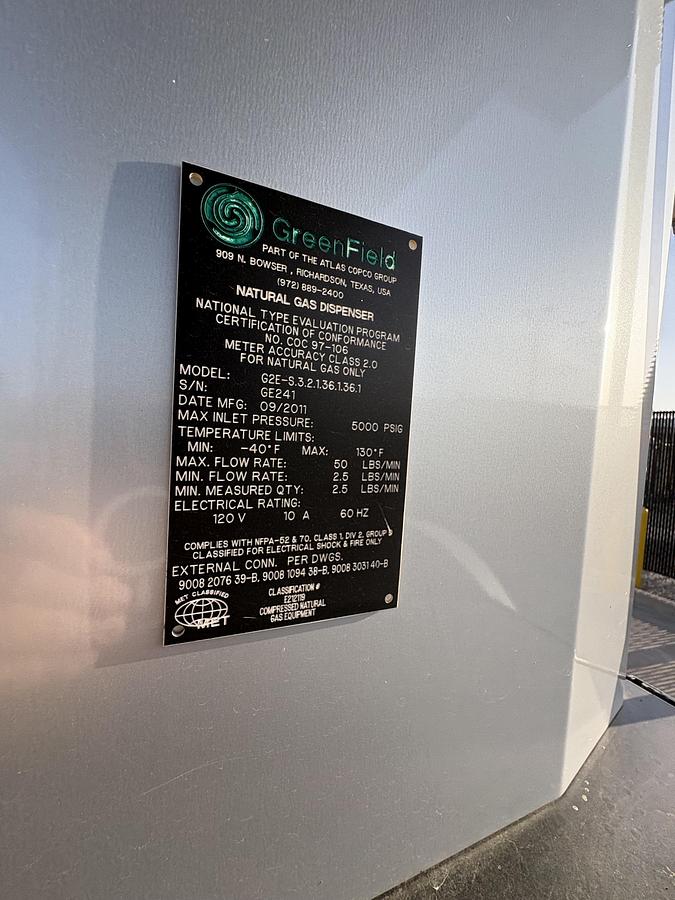

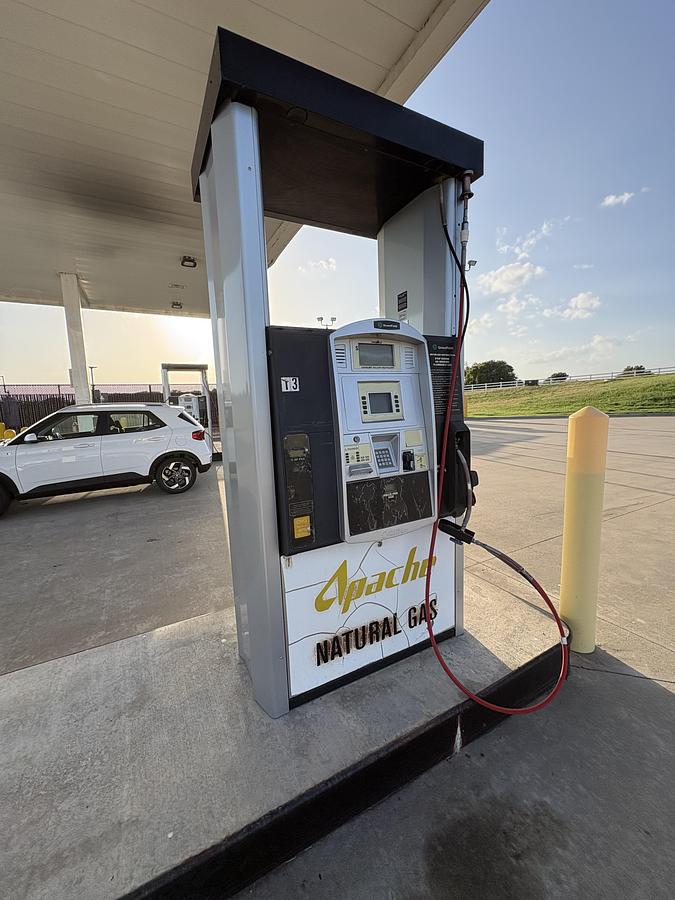

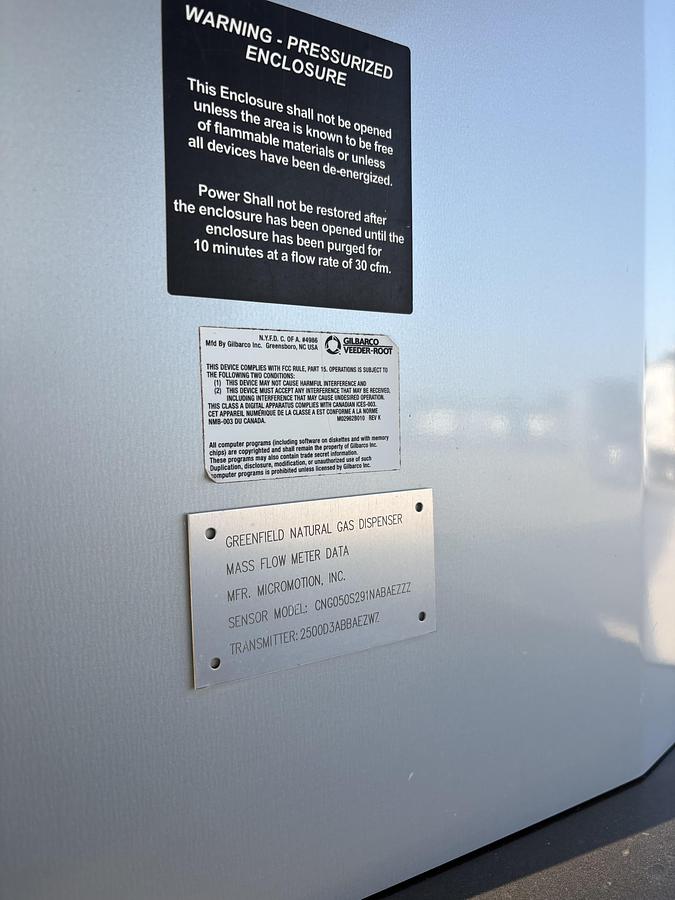

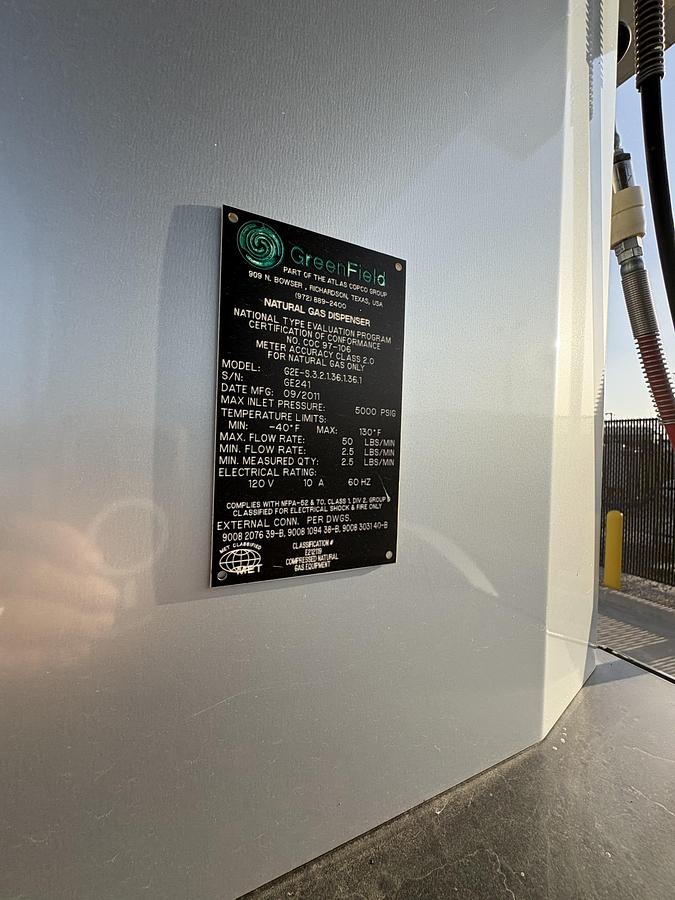

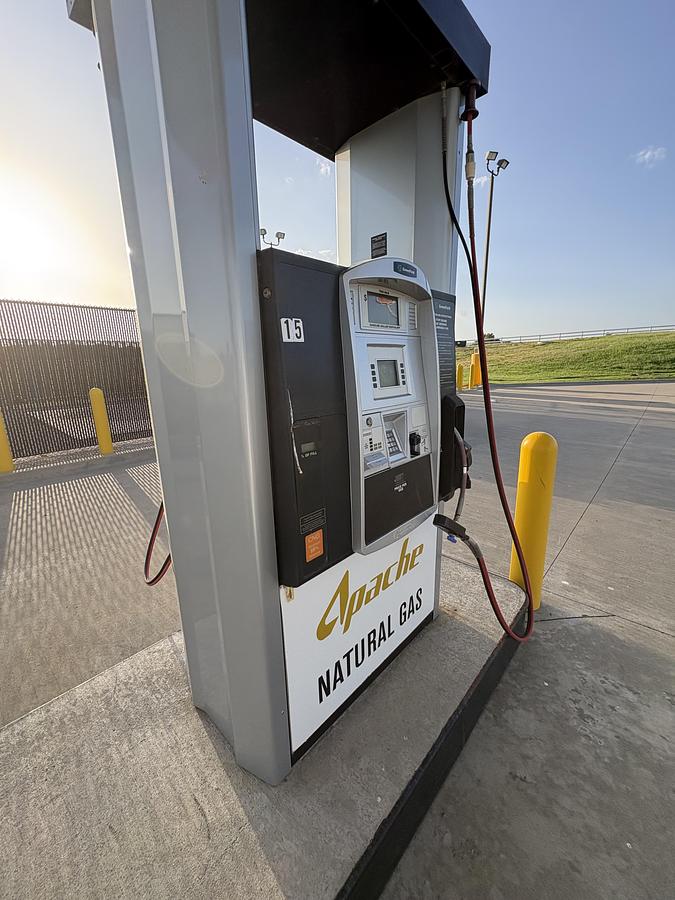

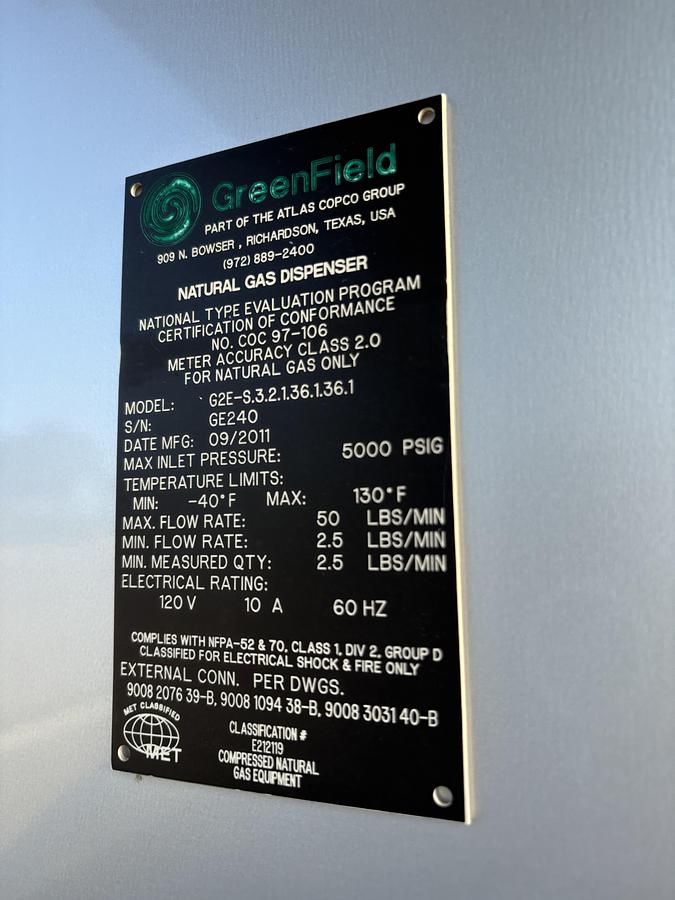

2 Dispensers:

Greenfield

Serial # GE240 GE 241

2 Hose Double Sided

Model G2E-S.3.2.1.36.1.36.1

Max inlet 5000psi

120 V 10A 60HZ

Max Flow Rate 50LB Min

The Station is available to view in Thackerville OK

Need a 2nd compressor?

We have FIVE JW 125 HP 4 stage just like this available

Questions?

Please reach out

Bob 773-960-5642
