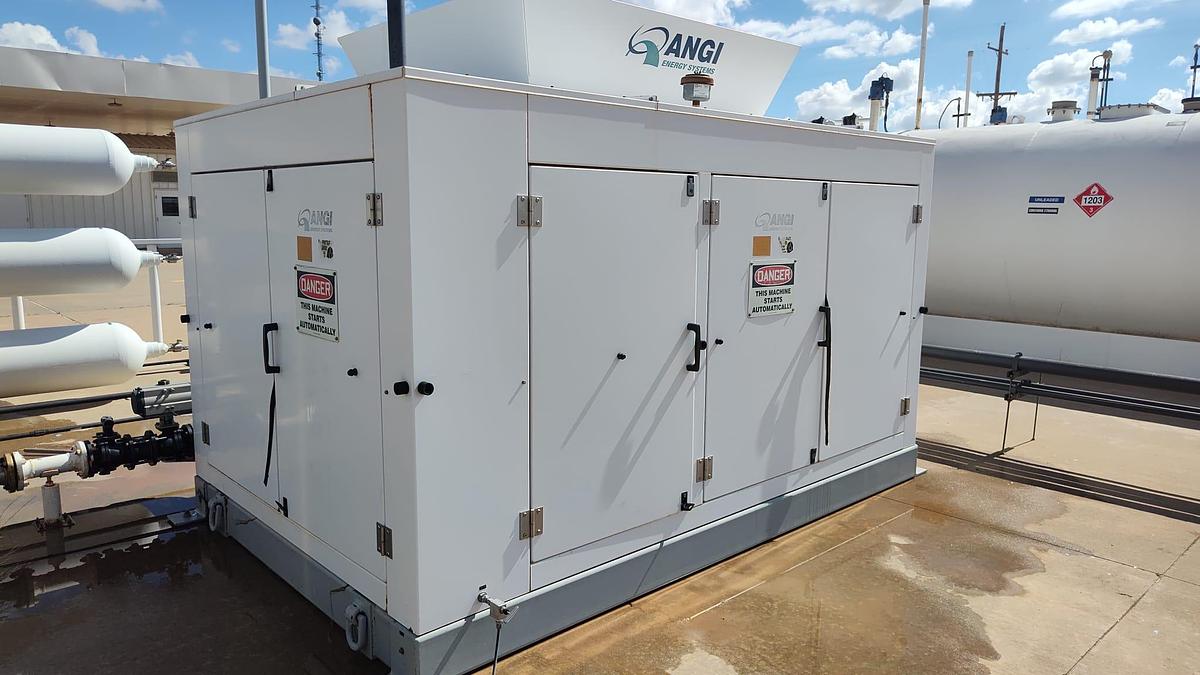

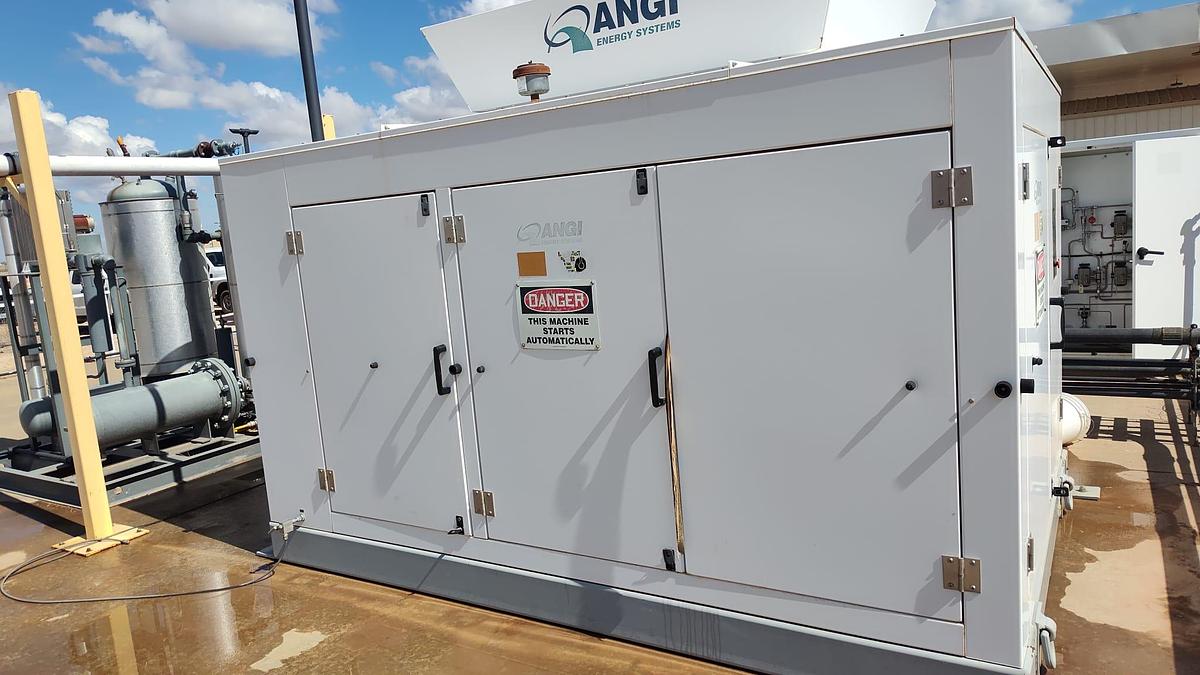

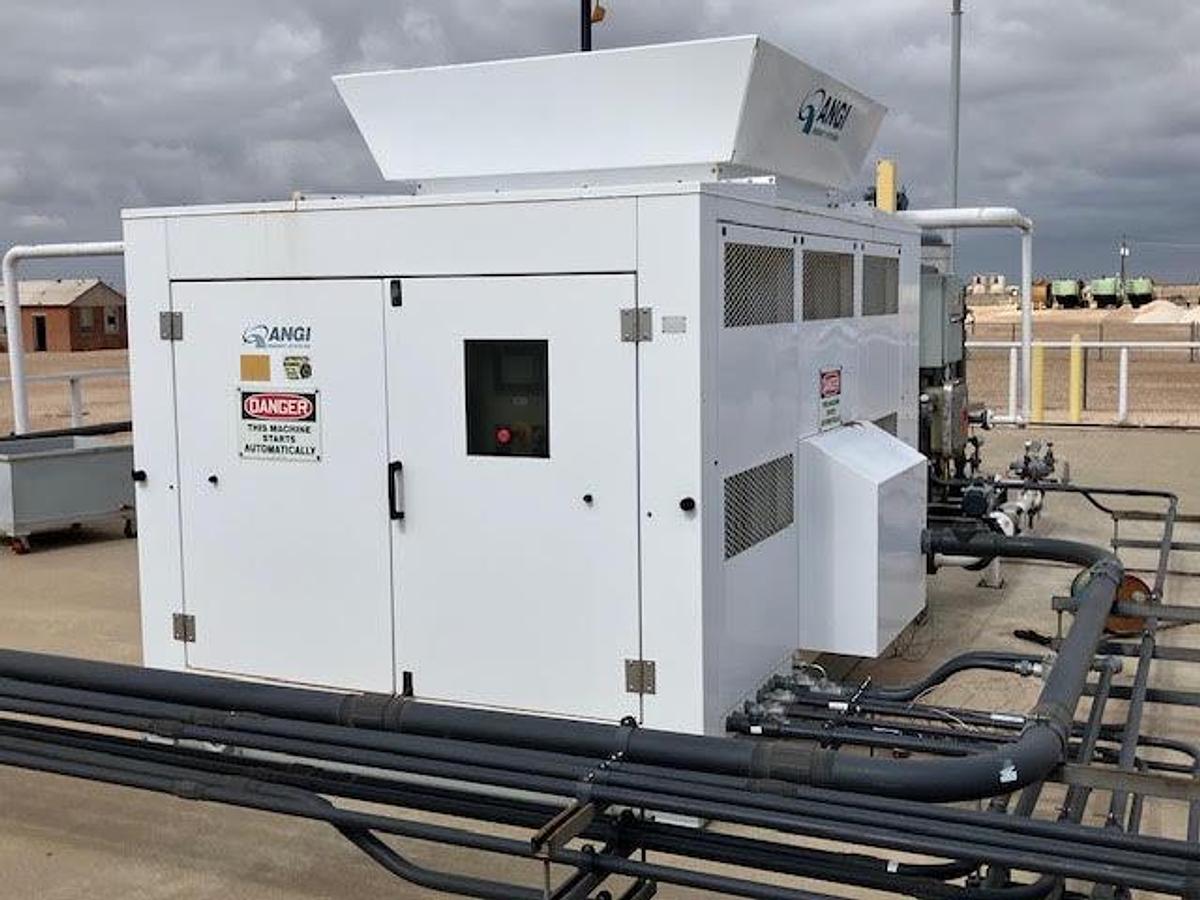

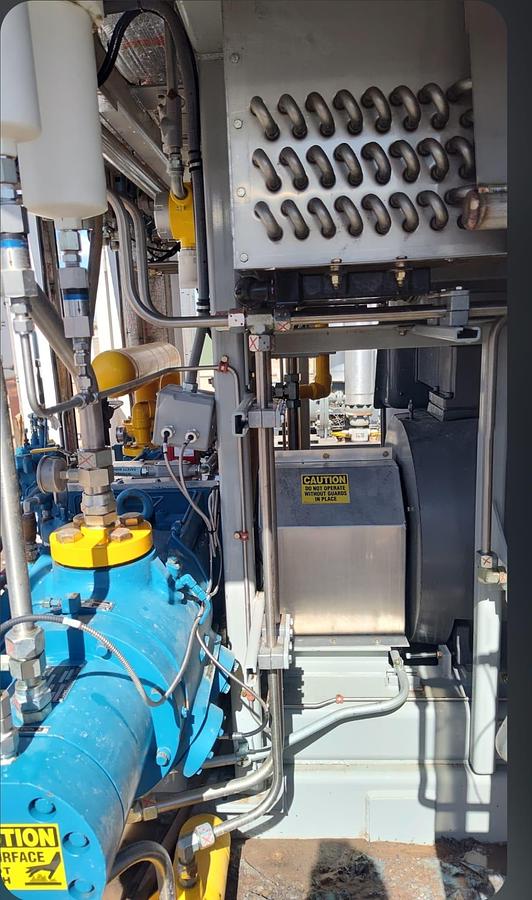

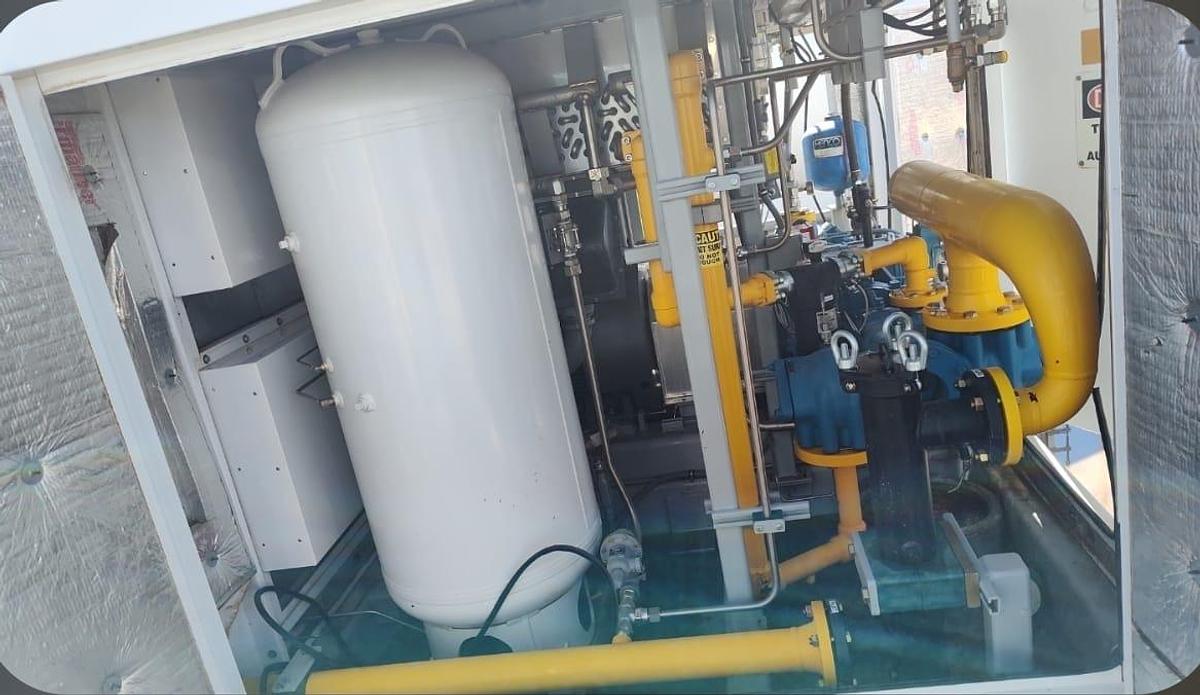

Angi Ariel 250 HP 4 stage J/GQ2 2012

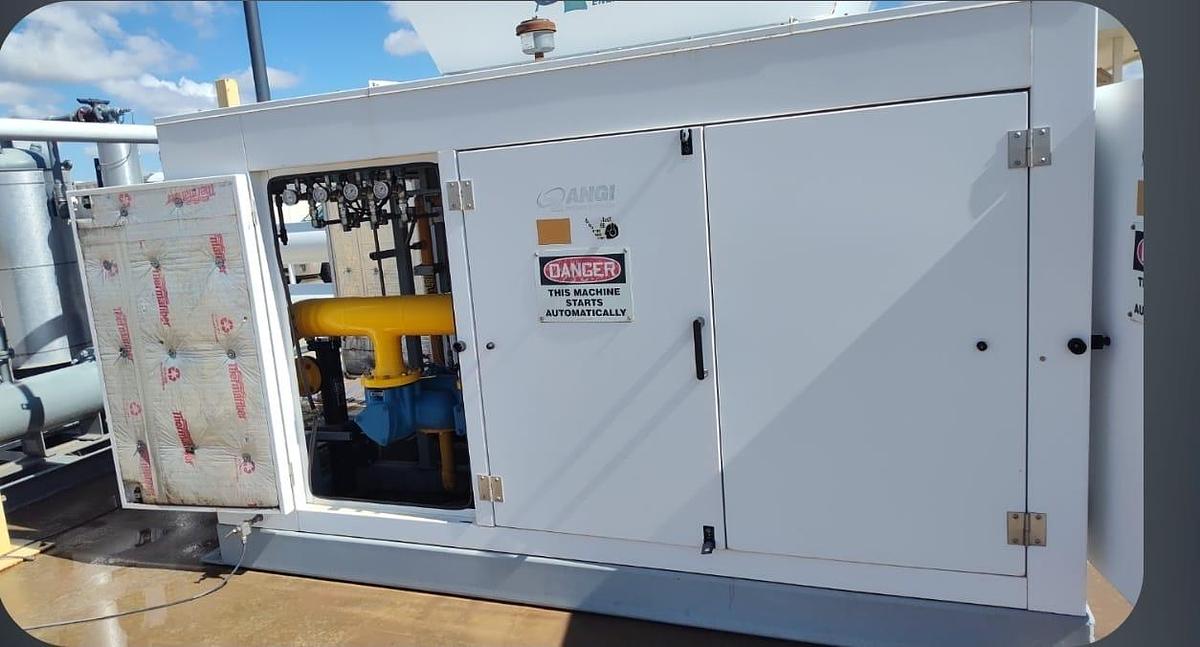

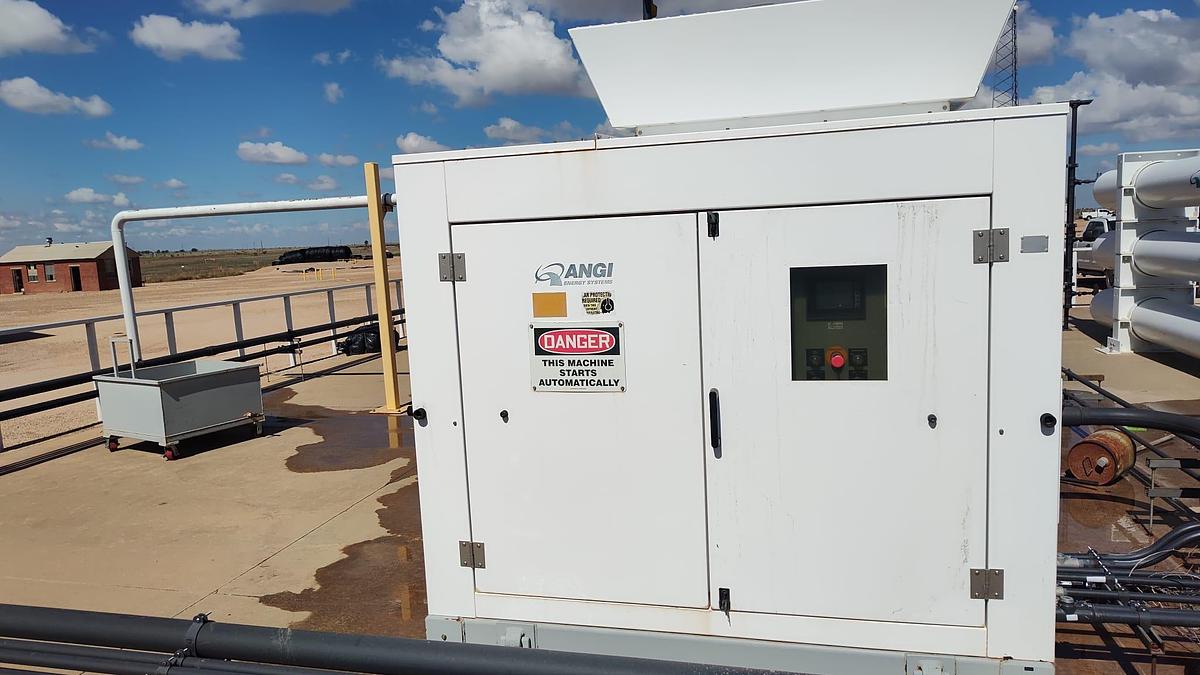

4 Stage Ariel JGQ/2 packaged by Angi 2272 Hours

Inlet pressure 50 to 115 PSI

Yields 755 SCFM at 115PSI

Shut down Working

Currently in Near Amarillo Texas

30 % of new price, Available now

Dimensions

Length 11 feet 5 inch

Width 8 feet 5 inch

Height 11 feet 1 inch

Weight approximately 15,000 pounds

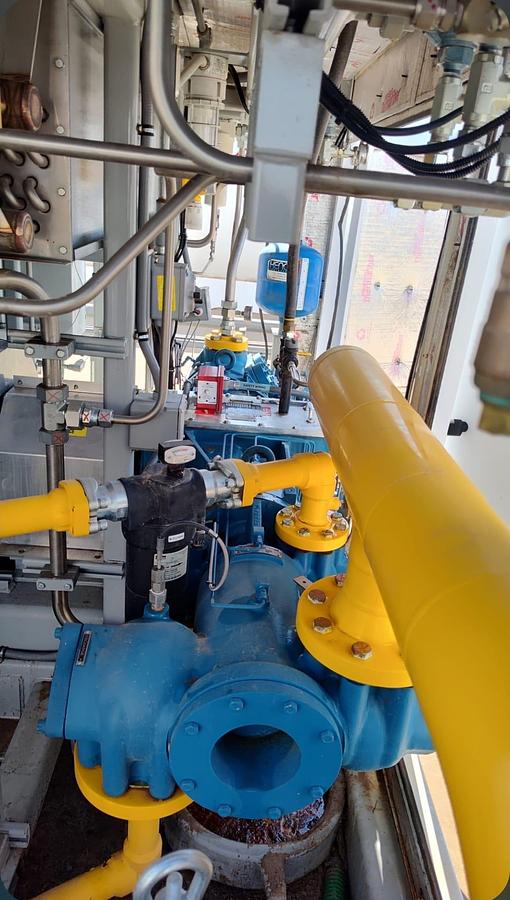

Compressor

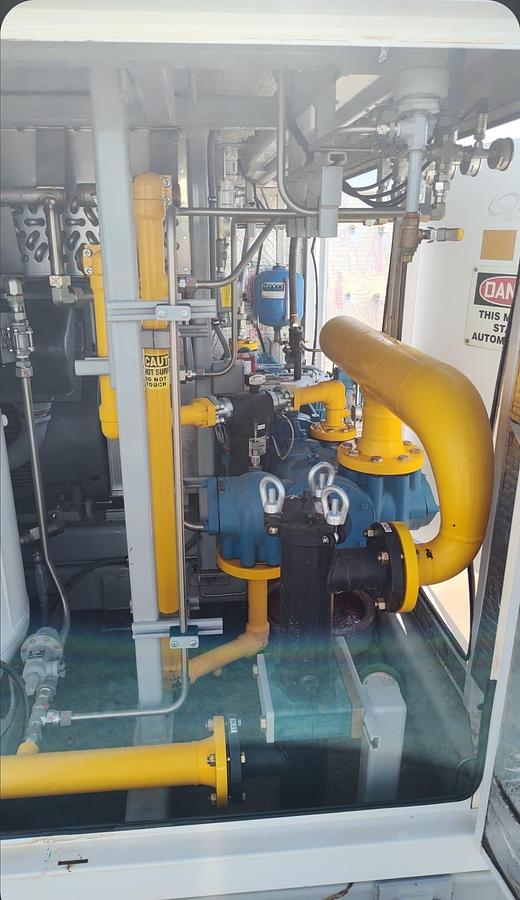

Compressor type Horizontally opposed, balanced reciprocating, lubricated type w/distance piece & vented crankcase.

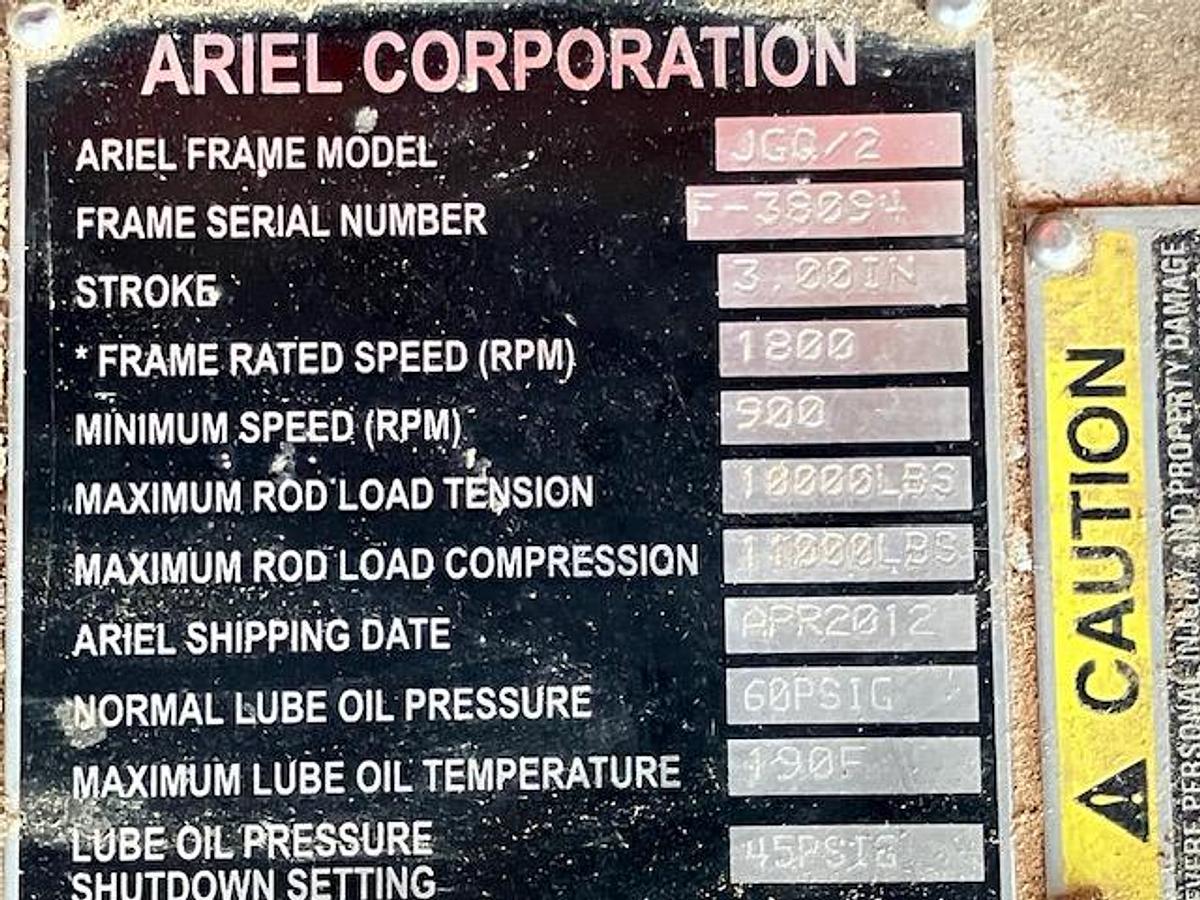

Maker/Model Ariel - Frame Type JGQ/2

Capacity @ rated psig induction 755 scfm @ 115 psig

Induction Pressure Range 50-115 psig

Maximum Delivery Pressure 4545 psig

Speed 1800 rpm

Stroke 3.00 inches

Number of Stages 4

Number of Cylinders 4

Pressure Relief Valves Per stage on the discharge piping

Oil Sump Capacity 2-1/2 Gallons

Oil ROYCO 889 ISO Synth

Drive Method Direct-drive though rigid coupling

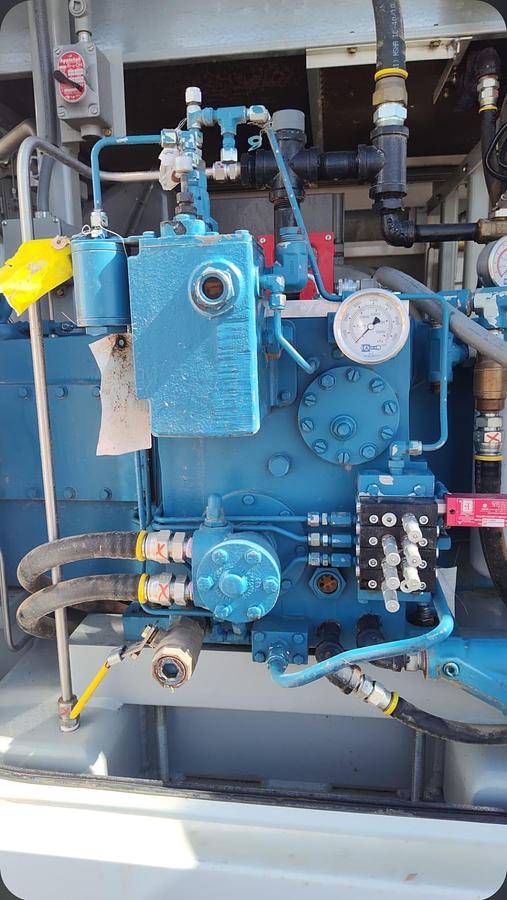

Compressor Lubrication

Crankcase Pressurized lube with pump & remote cooler

Force Feed Injector Pump Included on compressor-

Chain drive

Driver

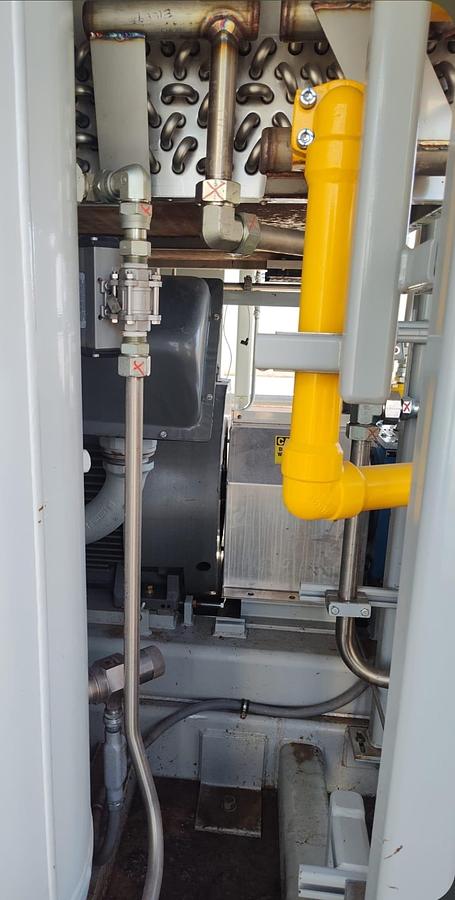

Prime Mover TEFC AC Electric Motor

Maker / Model BALDOR / 250 HP

Motor Specification

Rated Speed 1800 RPM

Rated Voltage 460 Volts / 60 Hz

Rated Horsepower 250 bhp

Service Factor 1.15

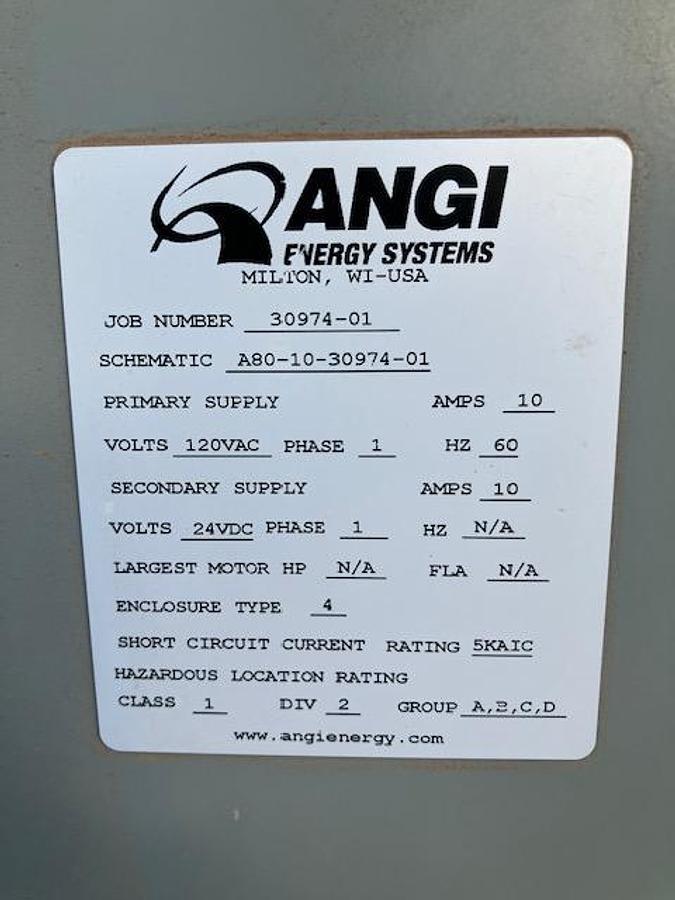

Classification CLASS 1 DIV 2

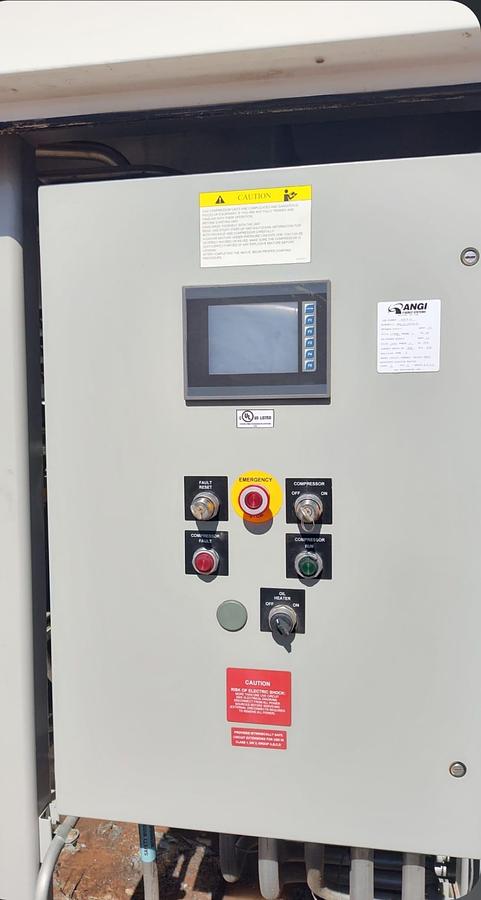

Motor Starting Method Off-skid Soft Starter

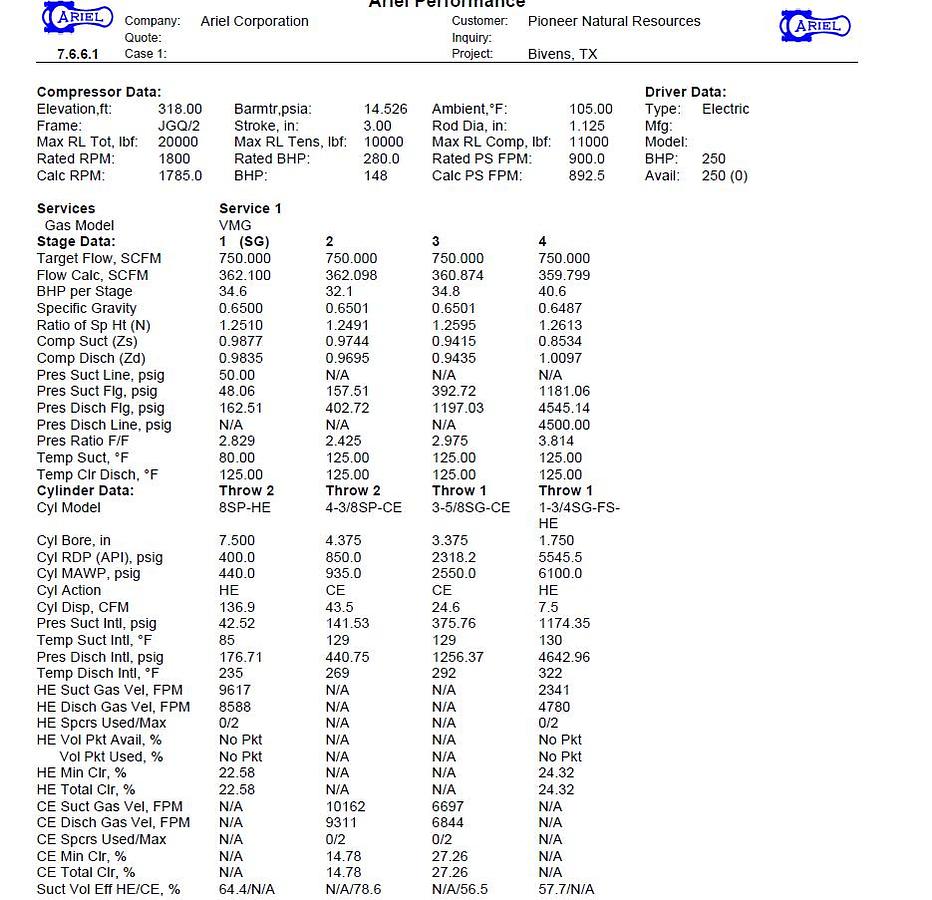

Compressor Data: Driver Data:

Elevation,ft: 318.00 Barmtr,psia: 14.526 Ambient,°F: 105.00 Type: Electric

Frame: JGQ/2 Stroke, in: 3.00 Rod Dia, in: 1.125 Mfg:

Max RL Tot, lbf: 20000 Max RL Tens, lbf: 10000 Max RL Comp, lbf: 11000 Model:

Rated RPM: 1800 Rated BHP: 280.0 Rated PS FPM: 900.0 BHP: 250

Calc RPM: 1785.0 BHP: 148 Calc PS FPM: 892.5 Avail: 250 (0)

Services Service 1

Gas Model VMG

Stage Data: 1 (SG) 2 3 4

Target Flow, SCFM 750.000 750.000 750.000 750.000

Flow Calc, SCFM 362.100 362.098 360.874 359.799

BHP per Stage 34.6 32.1 34.8 40.6

Specific Gravity 0.6500 0.6501 0.6501 0.6487

Ratio of Sp Ht (N) 1.2510 1.2491 1.2595 1.2613

Comp Suct (Zs) 0.9877 0.9744 0.9415 0.8534

Comp Disch (Zd) 0.9835 0.9695 0.9435 1.0097

Pres Suct Line, psig 50.00

Pres Suct Flg, psig 48.06 157.51 392.72 1181.06

Pres Disch Flg, psig 162.51 402.72 1197.03 4545.14

Pres Disch Line, 4500.00

Pres Ratio F/F 2.829 2.425 2.975 3.814

Temp Suct, °F 80.00 125.00 125.00 125.00

Temp Clr Disch, °F 125.00 125.00 125.00 125.00

Cylinder Data: Throw 2 Throw 2 Throw 1 Throw 1

Cyl Model 8SP-HE 4-3/8SP-CE 3-5/8SG-CE 1-3/4SG-FSHE

Cyl Bore, in 7.500 4.375 3.375 1.750

Cyl RDP (API), psig 400.0 850.0 2318.2 5545.5

Cyl MAWP, psig 440.0 935.0 2550.0 6100.0

Cyl Action HE CE CE HE

Cyl Disp, CFM 136.9 43.5 24.6 7.5

Pres Suct Intl, psig 42.52 141.53 375.76 1174.35

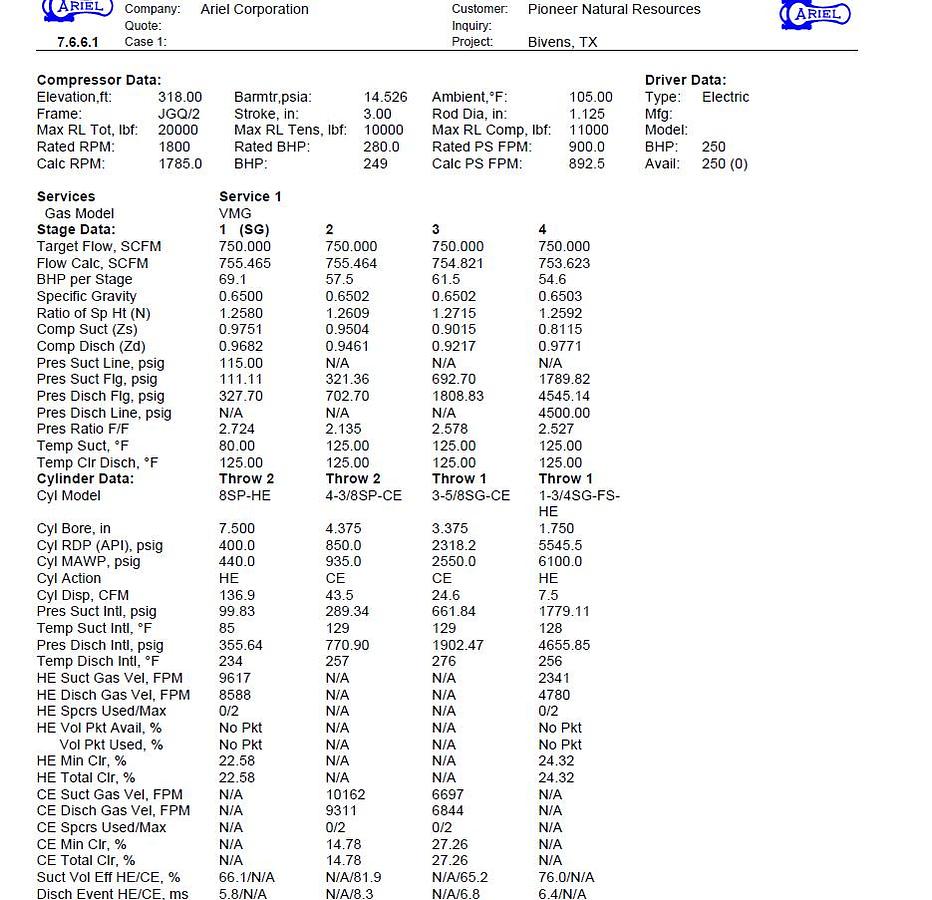

115 psi Inlet Below

Flow Calc, SCFM 755.465 755.464 754.821 753.623

BHP per Stage 69.1 57.5 61.5 54.6

Specific Gravity 0.6500 0.6502 0.6502 0.6503

Ratio of Sp Ht (N) 1.2580 1.2609 1.2715 1.2592

Comp Suct (Zs) 0.9751 0.9504 0.9015 0.8115

Comp Disch (Zd) 0.9682 0.9461 0.9217 0.9771

Pres Suct Line, psig 115.00 N/A N/A N/A

Pres Suct Flg, psig 111.11 321.36 692.70 1789.82

Pres Disch Flg, psig 327.70 702.70 1808.83 4545.14

Pres Disch Line, psig N/A N/A N/A 4500.00

Pres Ratio F/F 2.724 2.135 2.578 2.527

Temp Suct, °F 80.00 125.00 125.00 125.00

Temp Clr Disch, °F 125.00 125.00 125.00 125.00

Cylinder Data: Throw 2 Throw 2 Throw 1 Throw 1

Cyl Model 8SP-HE 4-3/8SP-CE 3-5/8SG-CE 1-3/4SG-FSHE
