2 Brand New Ariel Blocks JGM/2 75-150psi INLET HP 4 Stage CNG

A Rare find:

2 Brand new Ariel Blocks JGM/2 4 Stage inteded for 150 HP motor

75-150 PSI inlet and 400 cfm

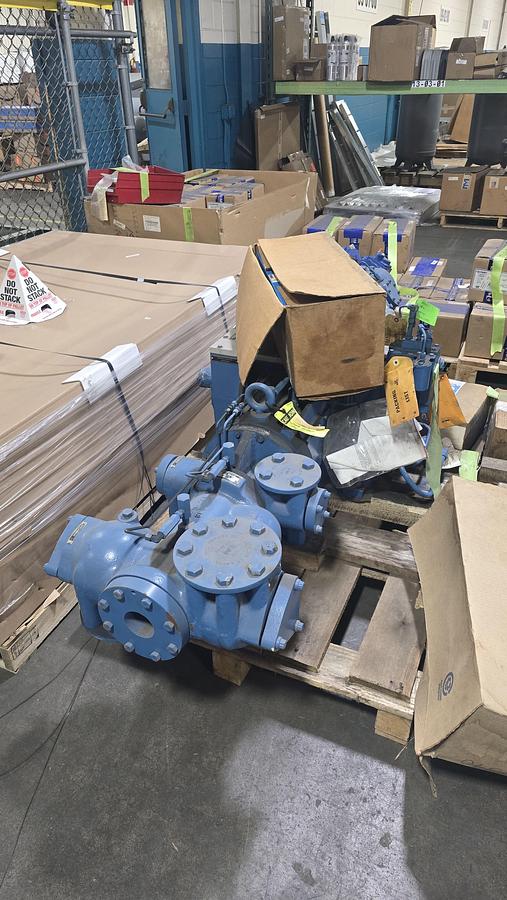

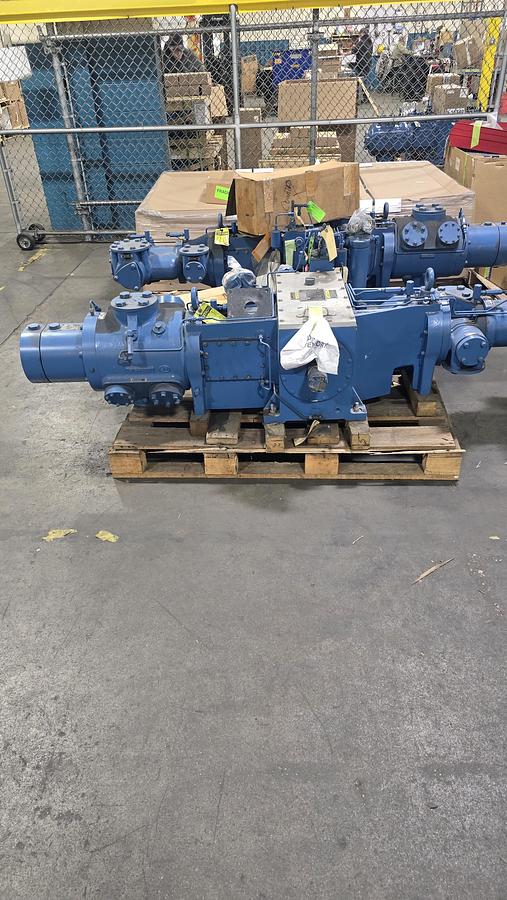

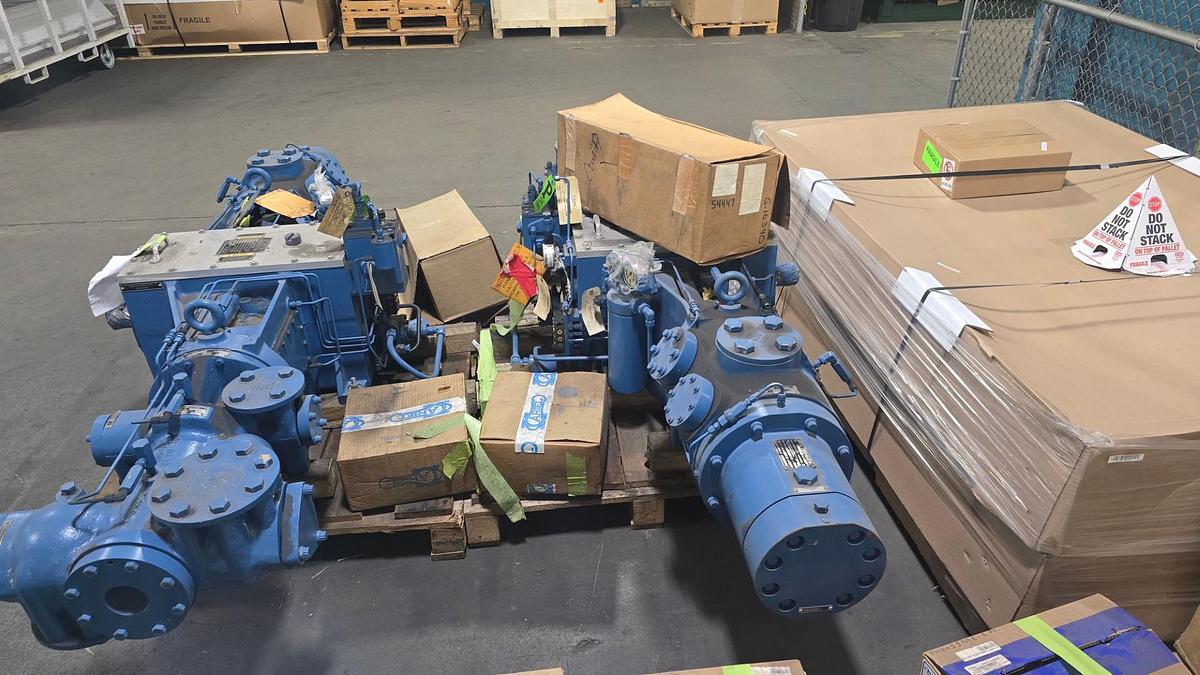

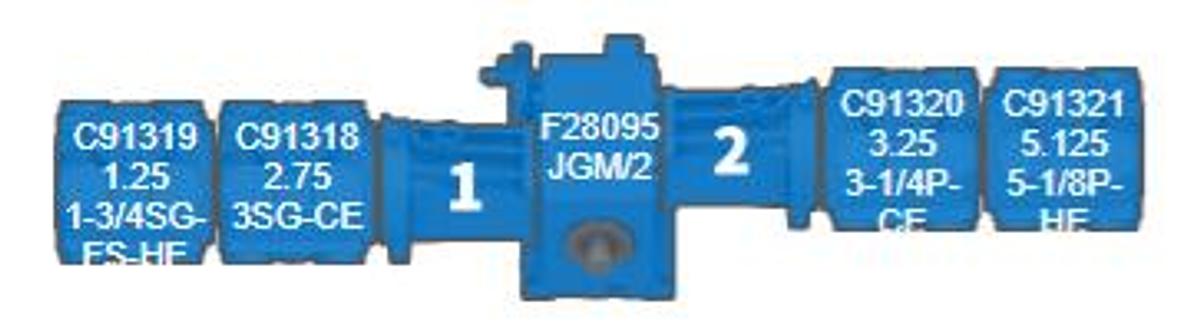

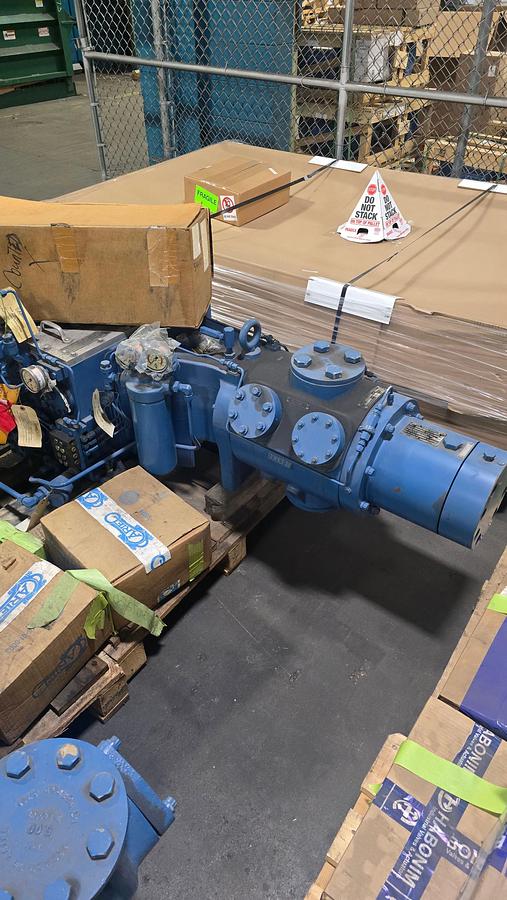

Please see the Drawing and pics below

SAVE a Bunch just wipe off the dust :)

Stage Data: 1 (SG) 2 3 4

Target Flow, Nm3/h 850.000 850.000 850.000 850.000

Flow Calc, Nm3/h 877.983 878.209 878.534 878.481

BHP per Stage 49.7 32.2 43.4 19.0

Specific Gravity 0.6500 0.6498 0.6495 0.6496

Polytropic Exponent (N) 1.2433 1.2621 1.3544 1.8162

Comp Suct (Zs) 0.9706 0.9348 0.8855 0.8109

Comp Disch (Zd) 0.9646 0.9330 0.9245 0.9042

Pres Suct Line, psig 170.00 N/A N/A N/A

Pres Suct Flg, psig 164.46 452.74 872.65 2248.51

Pres Disch Flg, psig 460.33 882.65 2265.57 3636.1

Cylinder Data: Throw 2 Throw 2 Throw 1 Throw 1

Cyl Model 5-1/8P-HE 3-1/4P-CE 3SG-CE 1-3/4SG-FSHE

Cyl Bore, in 5.125 3.250 2.750 1.250

Cyl RDP (API), psig 577.3 1022.7 2318.2 5545.5

Cyl MAWP, psig 635.0 1125.0 2550.0 6100.0

Cyl Action HE CE CE HE

Cyl Disp, CFM 62.0 22.0 14.9 3.7

Pres Suct Intl, psig 153.88 416.09 858.99 2228.3

Cylinder Data: Throw 2 Throw 2 Throw 1 Throw 1

Cyl Model 5-1/8P-HE 3-1/4P-CE 3SG-CE 1-3/4SG-FSHE

Cyl Bore, in 5.125 3.250 2.750 1.250

Cyl RDP (API), psig 577.3 1022.7 2318.2 5545.5

Cyl MAWP, psig 635.0 1125.0 2550.0 6100.0

Cyl Action HE CE CE HE

Cyl Disp, CFM 62.0 22.0 14.9 3.7

Pres Suct Intl, psig 153.88 416.09 858.99 2228.3
