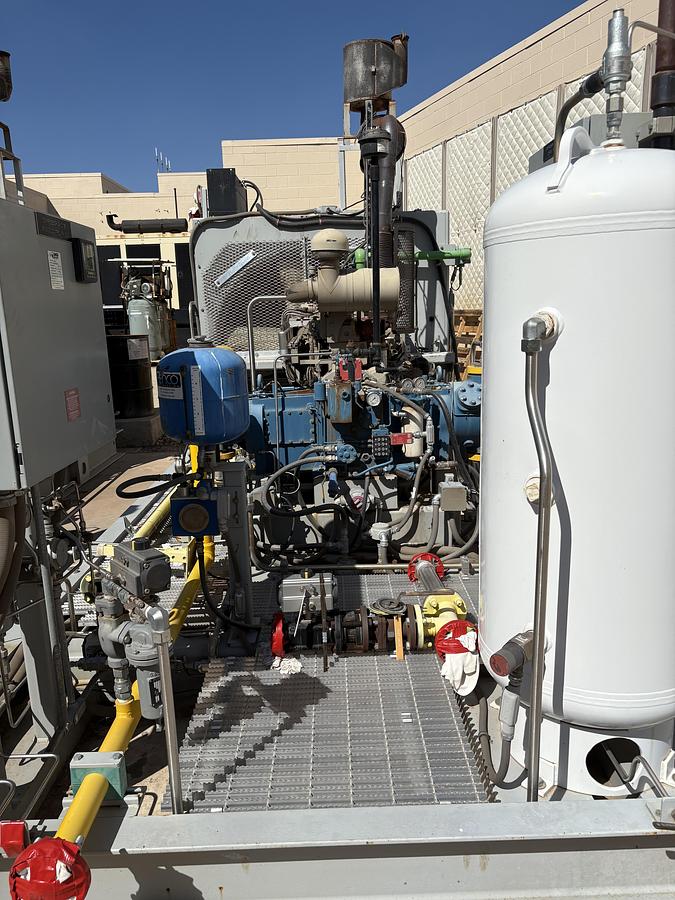

2 Ariel NG300G 3 Stage Cummins driven removed working ANGI Job # 30495-01 -02

Government maintained and shut down working.

Aproximately 4000 hours each

Ariel Compressors driven by Cummins Natural Gas Engines

Pictures will be forthcoming.

See the attached multi-runs for performance

Compressor type Horizontally opposed, balanced

reciprocating, lubricated type

w/distance piece & vented crankcase.

Maker/Model Ariel - Frame Type JGQ/2-3

Capacity @ rated psig induction 321 scfm @ 168 psig (11.5 Bar)

Rated 435 SCFM at 300 psi inlet.

Induction Pressure Range 168 psig (11.5 Bar)

Maximum Delivery Pressure 4545 psig

Speed 1800 rpm

Stroke 3.00 inches

Number of Stages 3

Number of Cylinders 3

Pressure Relief Valves Per stage on the discharge piping

Oil Sump Capacity 10 Gallons

Oil Amsoil ISO100SAE40 SYNTH

Drive Method Direct-drive though rigid coupling

Compressor Lubrication

Crankcase Pressurized lube with pump &

remote cooler

Force Feed Injector Pump Included on compressorChain drive

Driver

Prime Mover Natural Gas Engine

Maker / Model Cummins G8.3

Engine Specification

Configuration (In-line 6 Cylinder, 4-StrokeCycle)

Bore 4.49 inch (114 mm)

Stoke 5.32 inch (135mm)

Displacement 505 cu inch (8.3L)

Compression Ratio (10.5:1)

Aspiration (Naturally Aspirated)

Horsepower (118 bhp)

Speed (1800 rpm)

Motor starter Method (Gas Starter )

Ignition System (Altronic III Shielded Ignition )

Lube Oil Capacity 6.5Gal (32.0 L)

SPECIFICATION (Cont.)

Package

Dimensions

Length 18 feet 0 inch (5.5m)

Width 8 feet 03 inch (2.5m)

Height 8 feet 11 inch (2.7m)

Ambient Temperature Range -10 to 110 deg. F

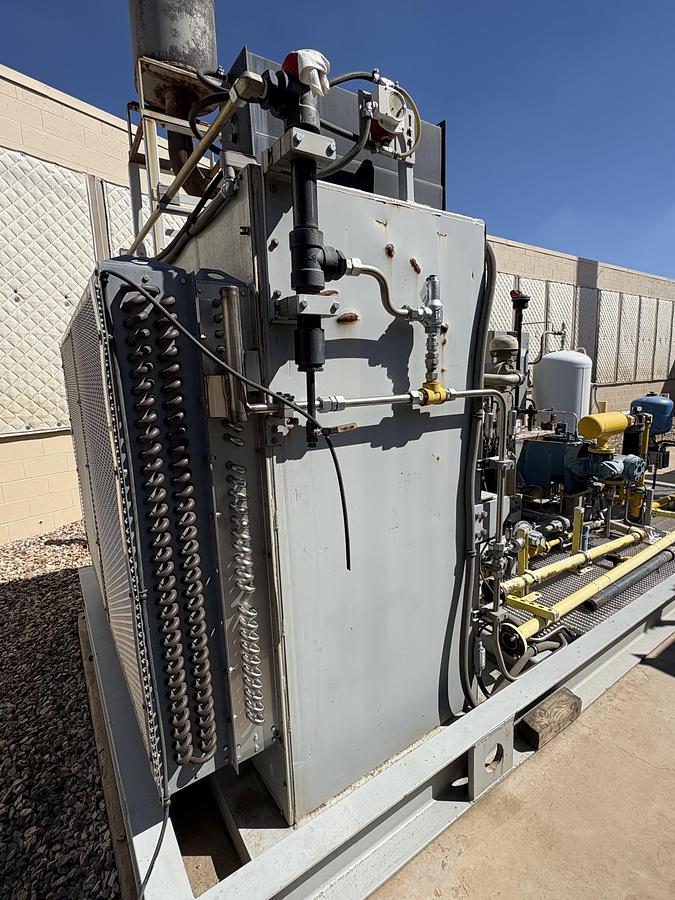

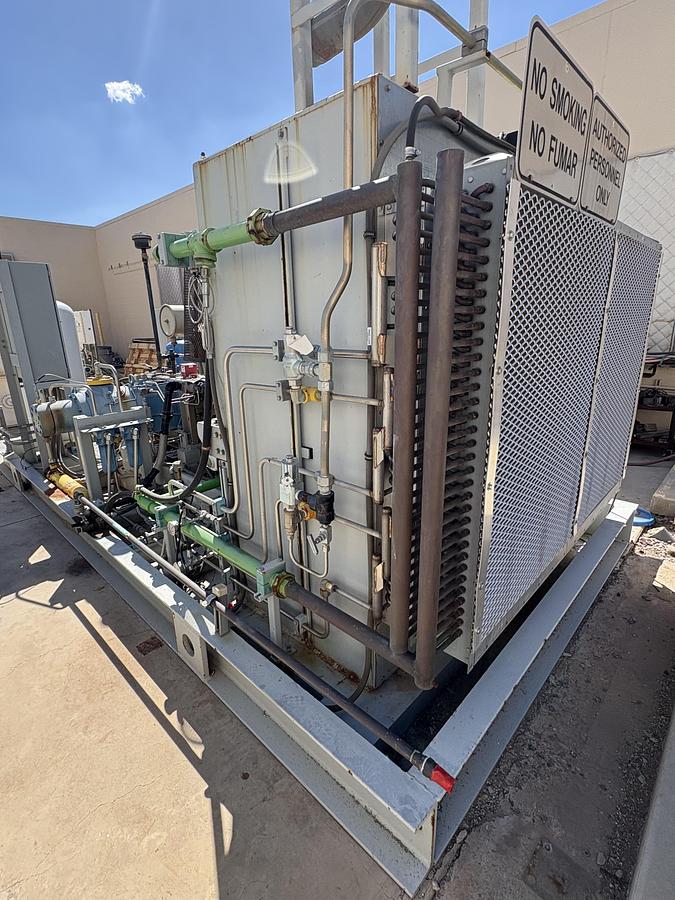

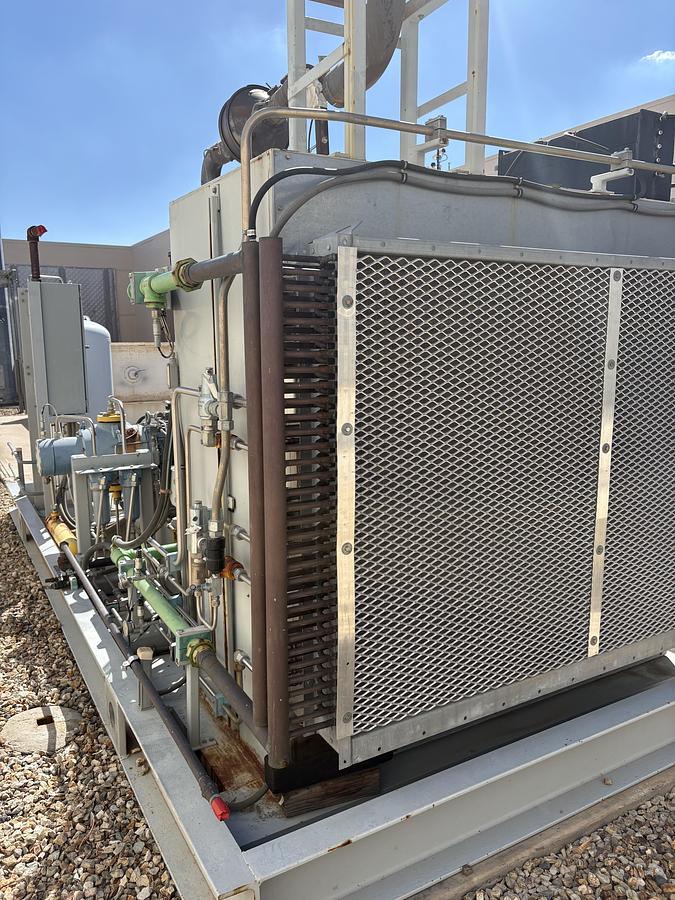

Gas Cooling

 Method Forced air utilizing 54 inch fan

 Inter-stage Cooling Yes

 After Cooling Yes

Gas Filtration

 Particulate Filters Yes – Inlet filtration

Coalescing Filters Yes – Inter-stage and discharge

filtration

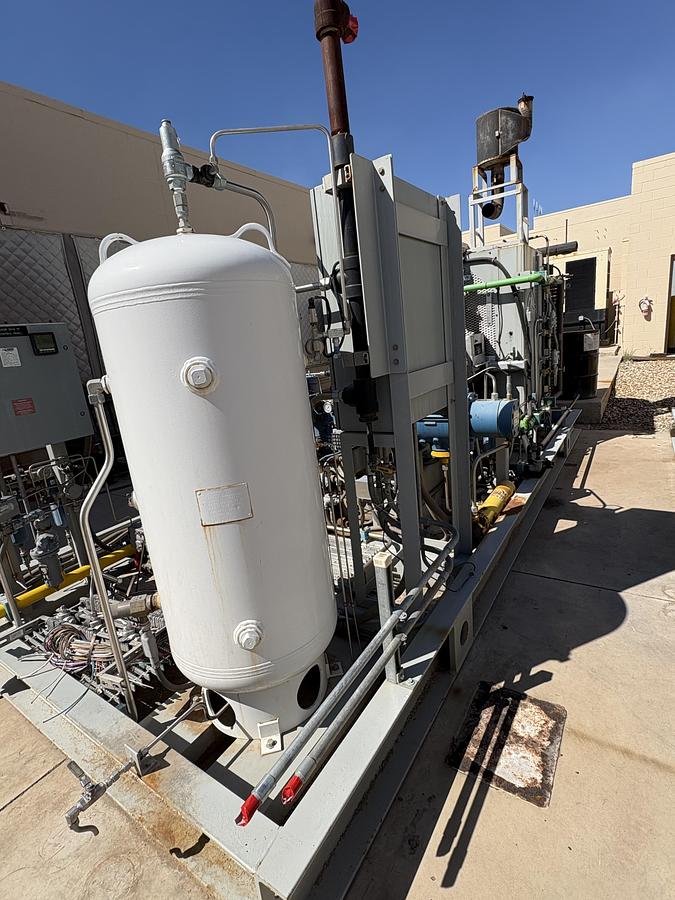

Captive Recovery Tank Provided - To allow periodic

unloading of each compressor

stage and to allow unloaded
