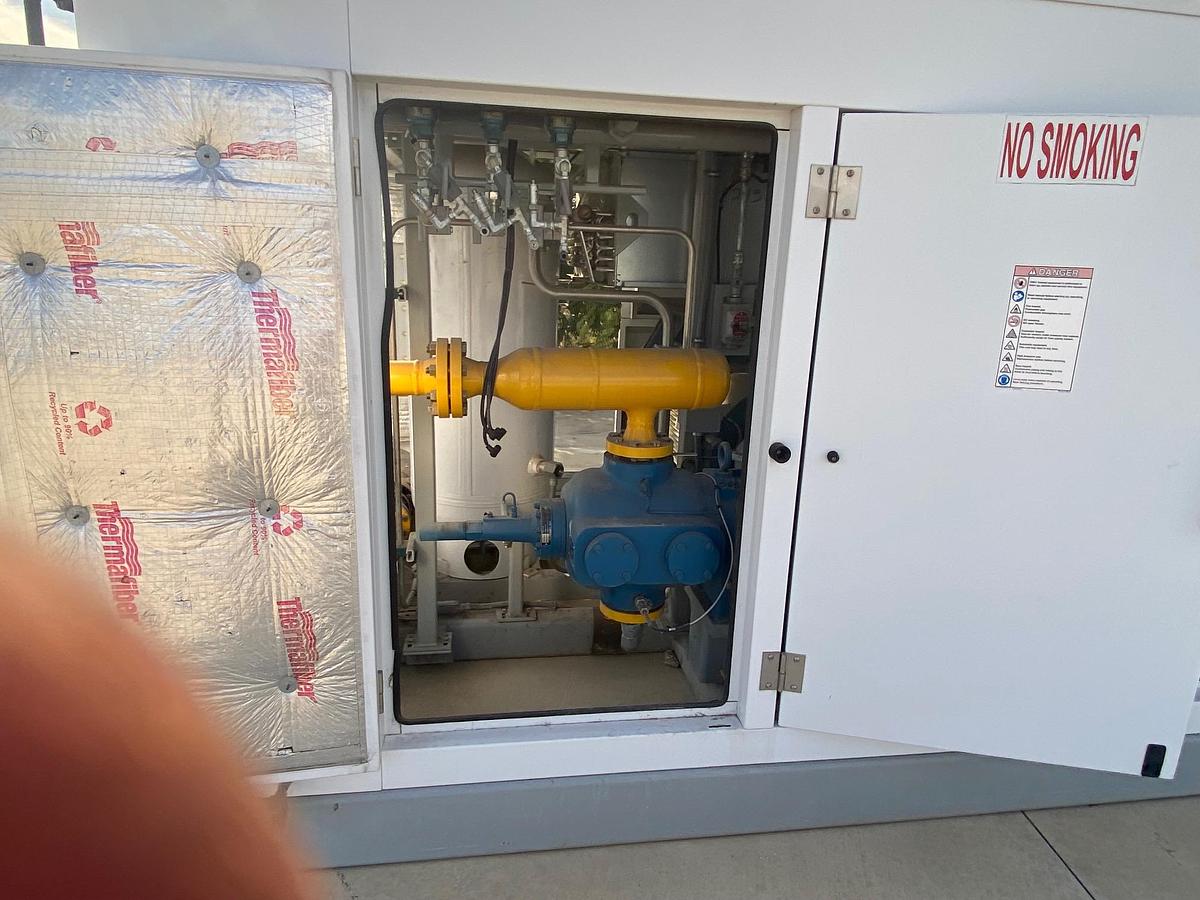

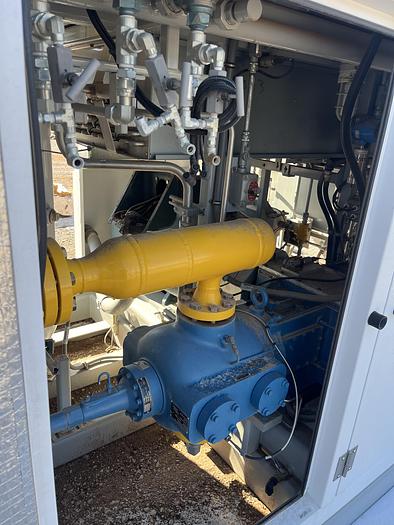

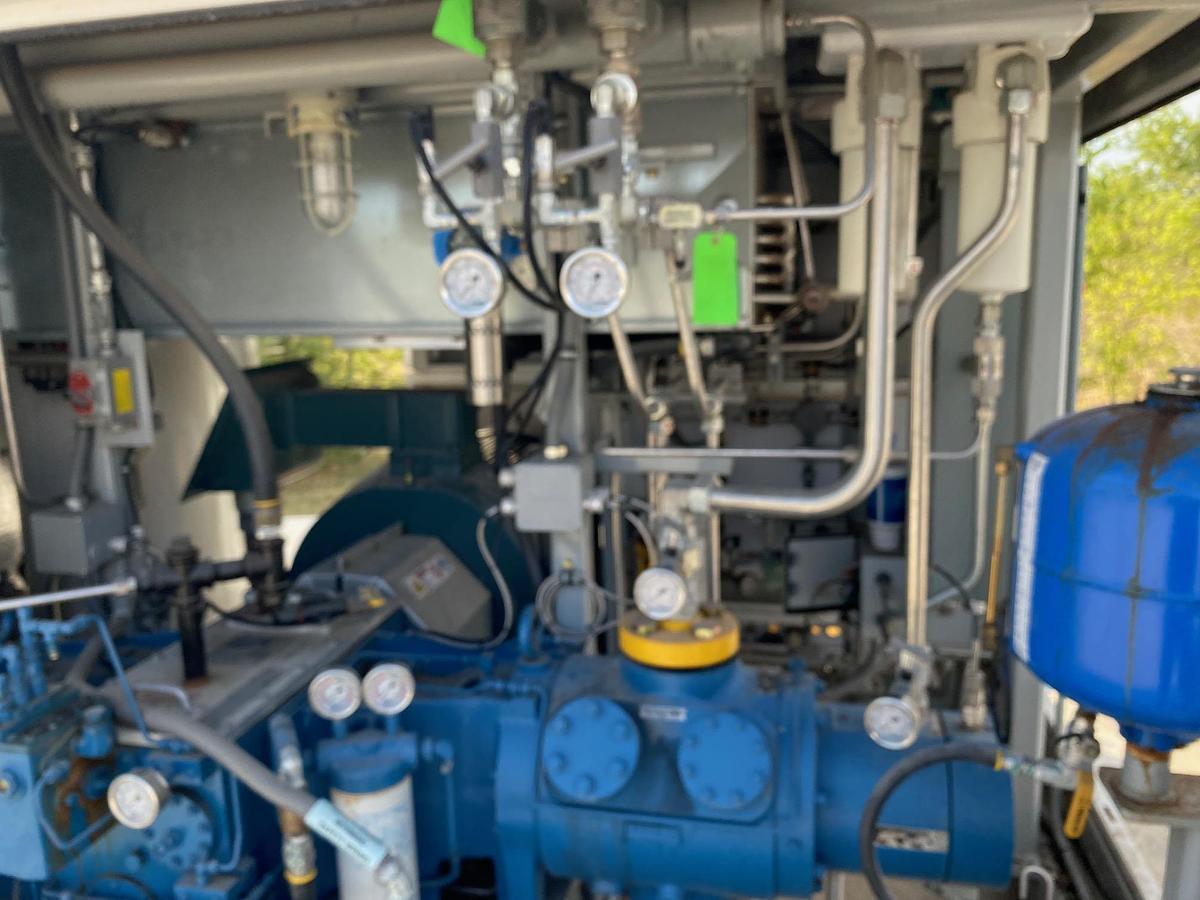

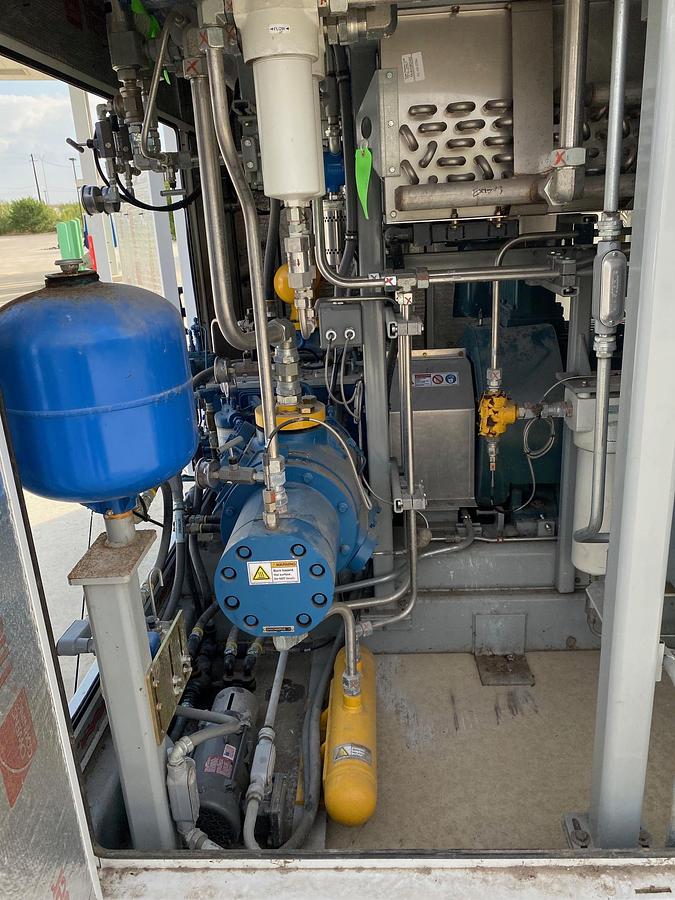

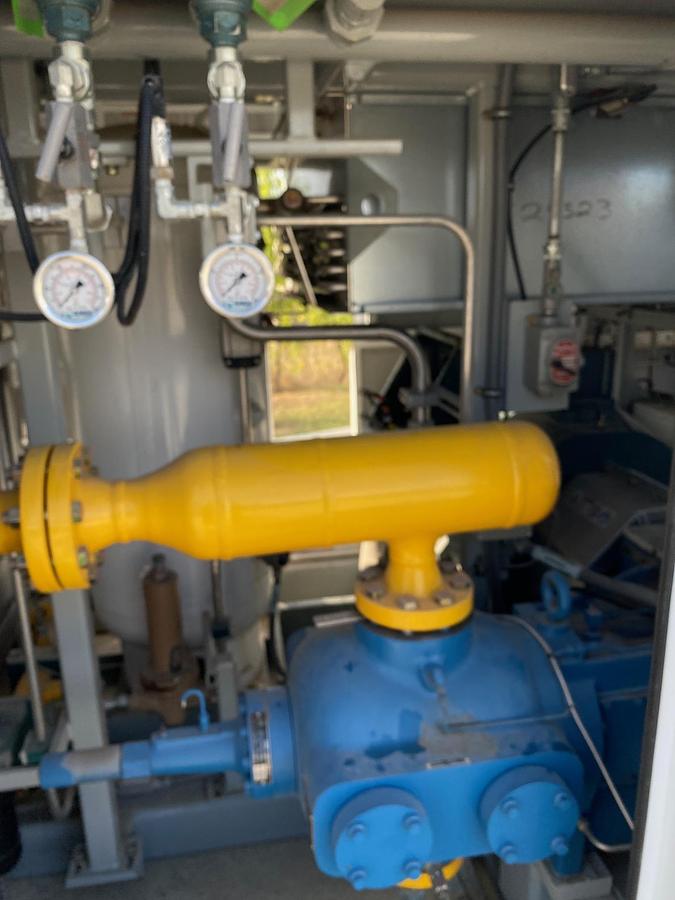

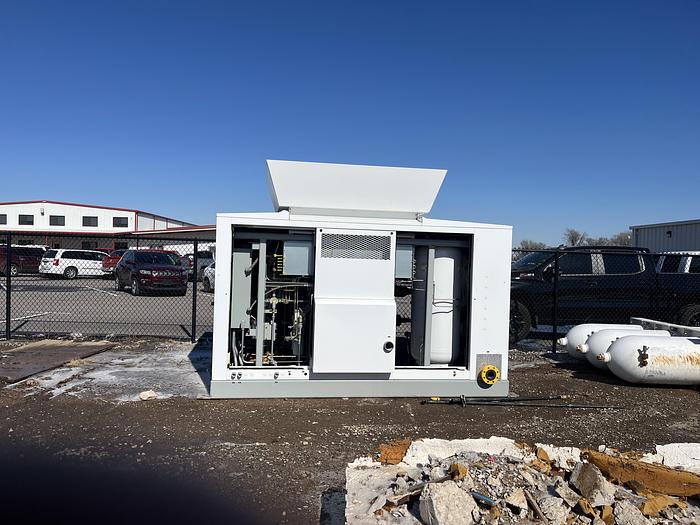

3 stage Ariel Angi packaged 250 HP low hours

3 Stage 250 HP Ariel with approximately 250 Hours built in 2014.

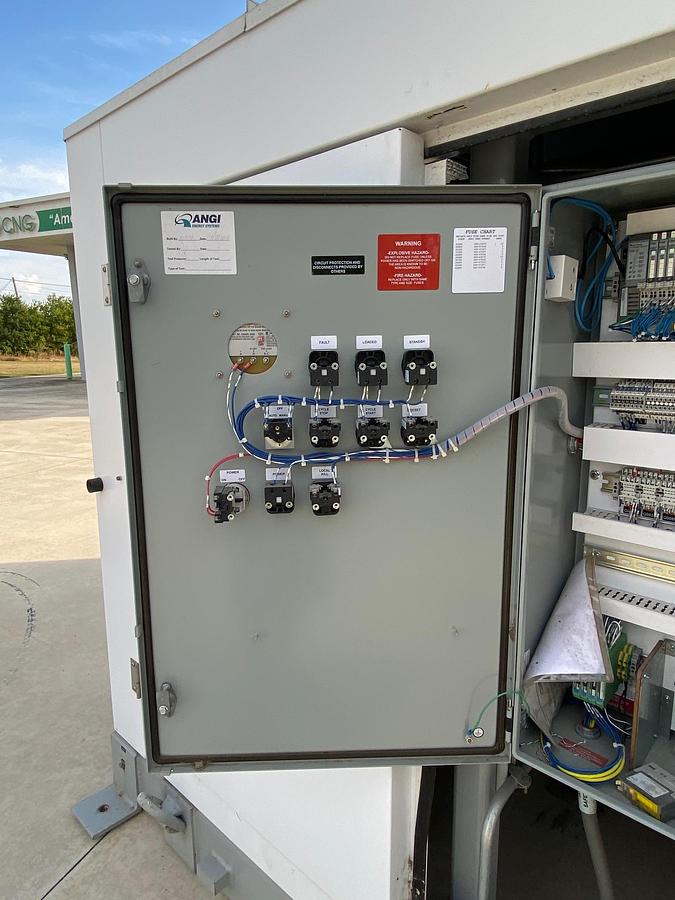

New starter and controls up dates included.

Available in Goldsby OK

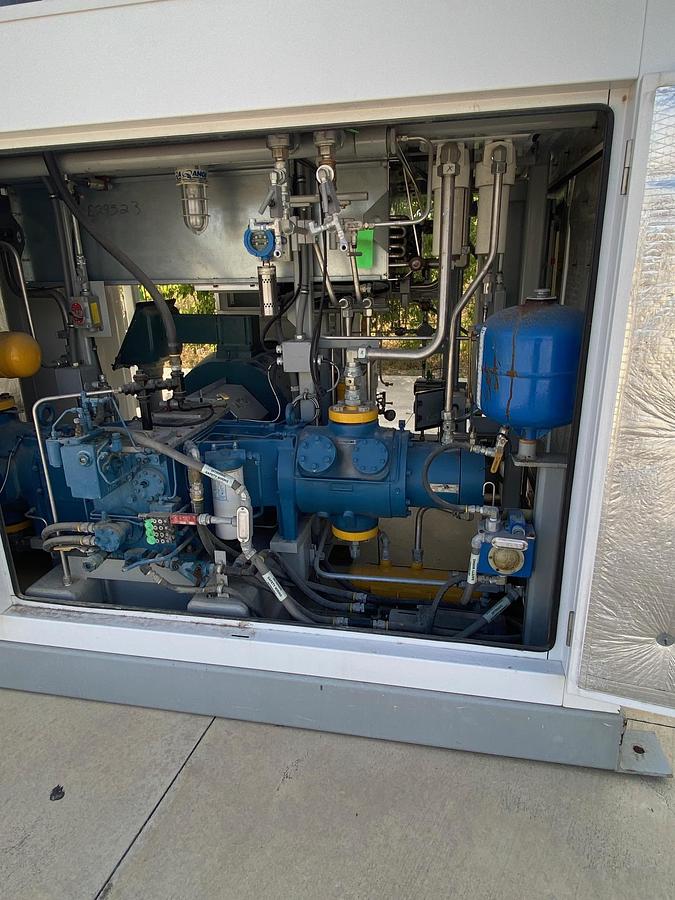

Compressor

Compressor type Horizontally opposed, balanced reciprocating, lubricated type w/distance piece & vented crankcase.

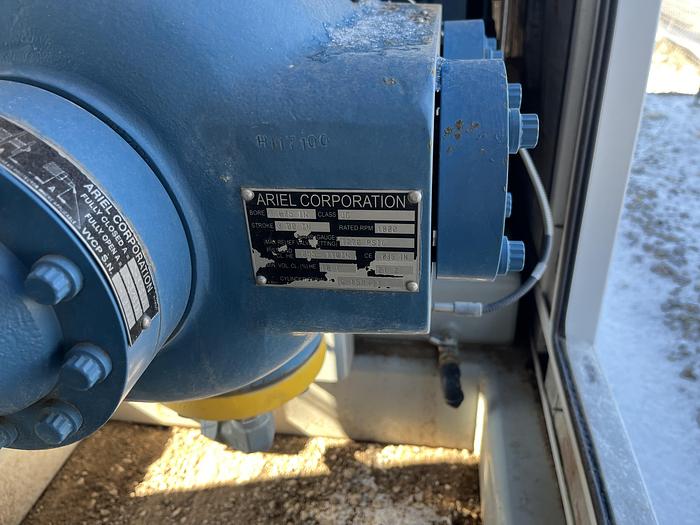

Maker/Model Ariel - Frame Type JGQ/2

Capacity @ rated psig inlet 686 scfm @ 290 psig

Maximum Delivery Pressure 4545 psig

Speed 1800 rpm

Stroke 3.00 inches

Number of Stages 3

Number of Cylinders 3

Pressure Relief Valves Per stage on the discharge piping

Oil Sump Capacity 2-1/2 Gallons

Oil ROYCO 889 ISO Synth

Drive Method Direct-drive though rigid coupling

Compressor Lubrication

Crankcase Pressurized lube with pump & remote cooler

Force Feed Injector Pump Included on compressor-

Chain drive

Driver

Prime Mover TEFC AC Electric Motor

Maker / Model BALDOR / 250 HP

Motor Specification

Rated Speed 1800 RPM

Rated Voltage 460 Volts / 60 Hz

Rated Horsepower 250 bhp

Service Factor 1.15

Classification CLASS 1 DIV 2
